RS PRO Pressure Pad Surface Mount 250mA, 25V dc

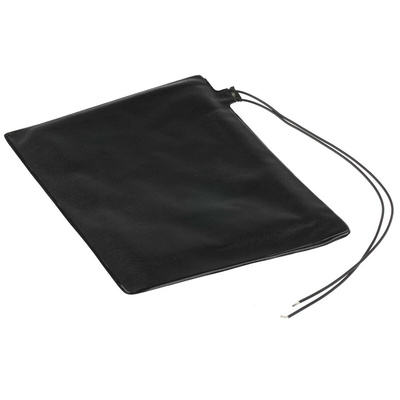

RS Pro Small Pressure Mat

Pressure mats will covertly detect a person standing or walking on them. The smaller pressure pads may also be used as a floor mat. Many applications have been found for pressure mats/pads, covert detection, sensors for interactive toys, the health care industry, sensors for interactive multimedia systems, i.e. when a person stands on a floor mat a multimedia presentation is triggered therefore providing accurate targeting. There are many possible applications providing it is on a solid, flat and rigid base.

Normally open
Dimensions:230x160x3mm
16Kg over 50mm² actuation pressure
Maximum switching voltage 25 V/DC
Maximum switching current 0.25 Amps DC (Resistive)
Carry current Max 0.25 Amps DC (Resistive)
Maximum power 10 W/VA
Ingress protection IP64 (Not waterproof)
Contact resistance 1 Ohm (typical)
Operating temperature -10° to +70° C
Seem welded PVC material

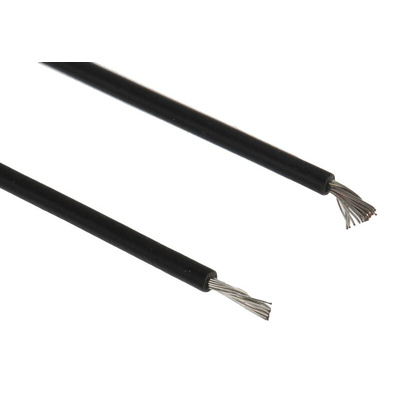

0.22mm² black PVC insulated cable

Note

Pressure Mats were initially designed for security applications to comply with the British standard BS 4737 Part 3: Section 3.9.
Pressure mat sensors should not be used in or relied on in safety related applications.
