980E, SCS 230V ac Antistatic Gun, Ioniser

Series 980/E Ionised Air Gun

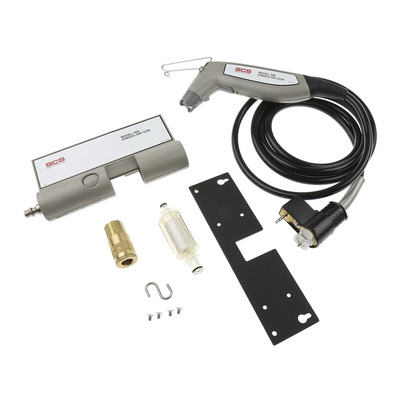

SCS 980E Ionised air gun gives you a balanced ionisation with consistent control of surface charges. The air gun virtually never needs any adjustments and very little maintenance. The 980 series provides you with efficient static charge neutralisation removing particle contamination on some of the most static sensitive products. Operating from 230 V ac the ionised air gun is both compact and light weight and can also be mounted anywhere on the workstation giving you easy access. The 980E ionised air gun connects to a clean supply of dry air or nitrogen and includes an internal disposable filter which collects any particles from the air supply.

FEATURES and BENEFITS:
Efficient static charge neutralisation
Removes particle contamination
Constantly balanced ionization
Requires little maintenance
Compact
Light weight
Mounted anywhere on the work station
Internal disposable filter
Ergonomically designed
Operates from 230 V ac
Static dissipative
ESD safe

AIR SUPPLY REQUIREMENTS:
Clean dry air or nitrogen

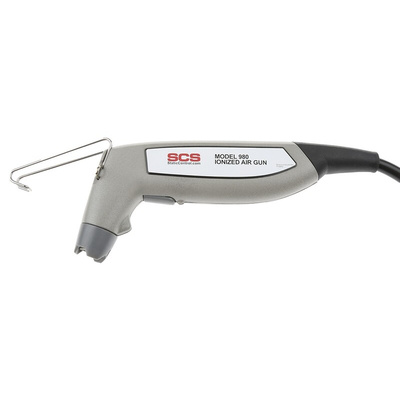

HAND UNIT:
Length 20.3 cm
Width 7.6 cm
Depth 2.5 cm
Weight 341 g
Air hose 2.1 metres

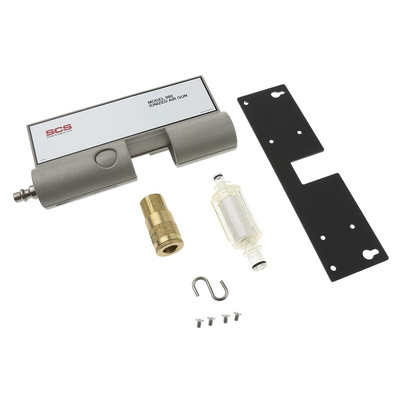

CONSOLE:
Length 21.6 cm
Width 7.6 cm
Depth 4.1 cm
Weight 326 g
Metal mounting plate

POWER REQUIREMENTS:
Console requires 24 V ac

Note

Power Adapter to be purchased separately
770753 Power adapter UK Plug 178-4227
770754 Power adapter Europe 178-4228

Approvals

cULus, Meets 2004-108-EC Directive, Low voltage meets 2006-95-EC Directive

Datasheet
