EATS30N, Eaton UPS Source Transfer Switch

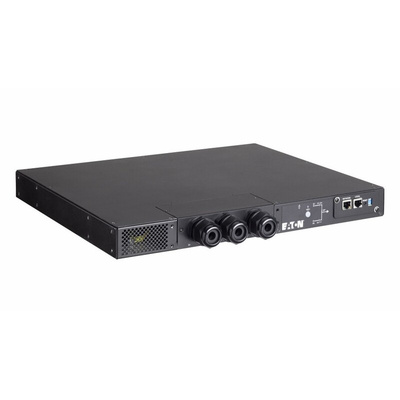

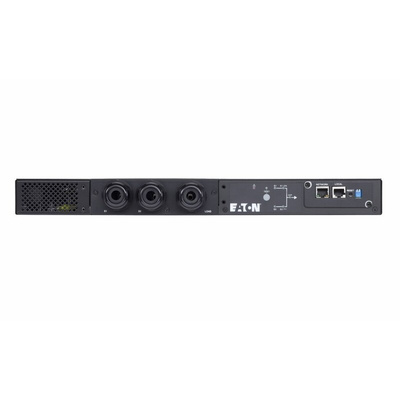

EATON ATS 30

The Eaton ATS 30 Netpack is designed to guarantee the uninterrupted operation of sensitive equipment. Powered by two independent power sources and automatically makes a rapid switch form one source to the other when the power supply used to power its connected load fails. This ATS is efficient and reliable.
Users can know power flow and the Eaton ATS 30's status from the user-friendly front panel. Besides, the unit has a network interface for users to read and write parameters. The network interface can be Implemented via the Ethernet protocol through a RJ45 connector

Provides power redundancy to IT equipment
Alternative to expensive redundant power supplies available from networking equipment vendors
Compact, 1U rack form factor
Seamlessly switches from one power source to the other
Network management on ATS 30 Netpack versions
LCD with metering and basic configuration capabilities

The ATS 30 provides network connectivity. This allows users to access, configure and manage units from remote locations

Note

ATS30 Hardwired inputs and output

Supplied with

User manual
Safety instructions
Warranty sheet (EATS30H)
ATS module
Rack mounting bracket

Eaton Power Source Transfer Switch

Installation & User Manual
