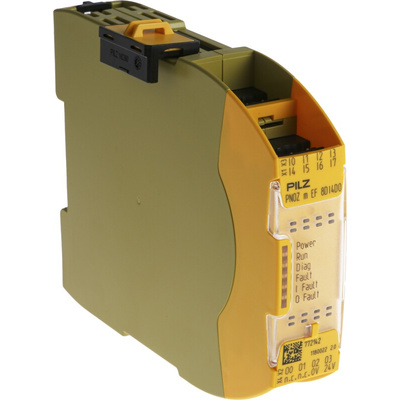

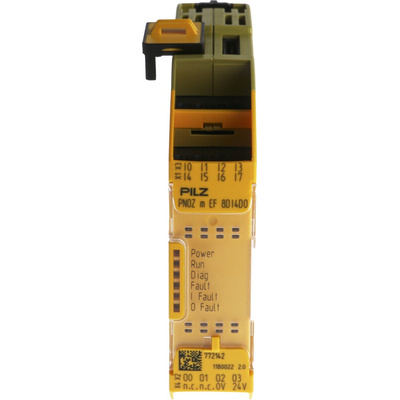

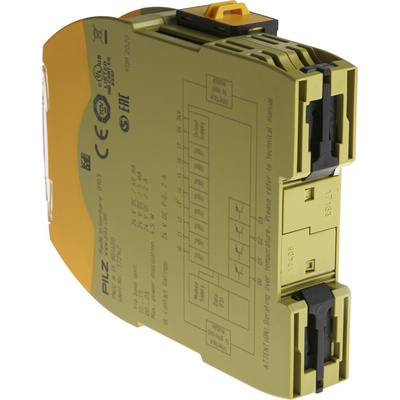

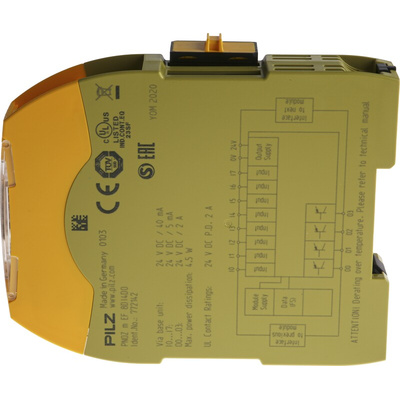

PNOZmulti 2 Safe Input/Semiconductor Output Module
The PNOZ m EF 8DI4DO expansion module connects to a base unit from the PNOZmulti 2 configurable control system. It has 8 safe inputs and 4 safe semiconductor outputs. Depending on the application, it offers protection up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061.
Features and Benefits
Can be configured in the PNOZmulti Configurator
8 safe inputs
4 safe semiconductor outputs, up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061
LED for error messages, diagnostics, supply voltage, output circuits and input circuits
Test pulse outputs used to monitor shorts across the inputs
Monitoring of shorts between the safety outputs
Applications
The PNOZ m EF 8DI4DO can connect E-Stop, two-hand button, safety gate limit switch, start button, light beam, scanner, enabling switch, PSEN, operating mode selector switch.
Standards
EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3.
Approvals
CE, cULus Listed, TÜV, BG, CCC.
Supplied with
Screw terminals.
Pilz Input/output Module
The Pilz PNOZmulti 2 series input/output relay module is the latest device has 8 safe inputs and 4 safe relay outputs. It has a power rating of 2W and is available in a screw terminal type. Its expansion module connects to a base unit from the 2 configurable control system. It has a supply voltage rating of 24VDC.
Features and Benefits
DIN rail mounting
LED for error messages, diagnostics, supply voltage, output circuits, and input circuits
Test pulse outputs used to monitor shorts across the inputs
Monitoring of shorts between the safety outputs
Operating temperature ranges between -10°C and 55°C
Certifications
EN ISO 13849-1PLe
EN ISO13849-1Cat4
ENIEC62061
SILCL3
CSA certified
UL listed
TUV certified
CCC certified
