PNOZmulti 2 Motion Monitoring Modules

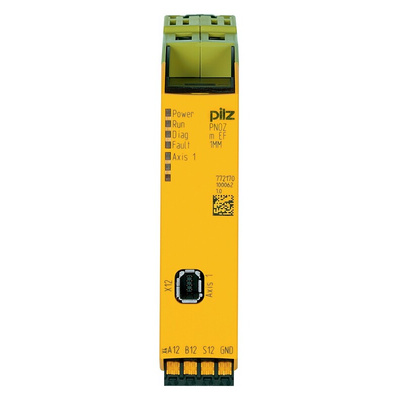

The PNOZ m EF *MM expansion module connects to a base unit from the PNOZmulti 2 configurable control system. Two models are available: PNOZ m EF 1MM provides safe monitoring of one axis and PNOZ m EF 2MM provides safe monitoring of two independent axes.
Features and Benefits
Can be configured in the PNOZmulti Configurator
Monitoring of 1 axis, stock no. 918-6617
Monitoring of two independent axes, stock no. 918-6611
Measured value recorded by proximity switch and encoder
LED display for supply voltage, diagnostics, axis status and errors
Support the safe drive function in accordance with EN 61800-5-2
Applications
Safe speed monitoring (SSM)
Safe speed range monitoring (SSRM)
Safe direction of movement monitoring (SDIM)
Safe operating stop monitoring (SOSM)
Analogue voltage (track S)
Standards
EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3; IEC 61511 SIL 3.
Approvals
CE, cULus Listed, TÜV, BG, CCC.
Supplied with
Screw terminals.
Техническая спецификация
