542000, Pilz Transponder Non-Contact Safety Switch, 24V dc, Plastic Housing, M12, Выключатель

PSENcode Slim Non-Contact Safety Switch, Coded

The PSEN cs5.11 and PSEN cs5.1p safety switches are coded and only switch when used with an actuator from the PSEN cs1.1 series. There is no restriction on the number of times the actuator can be used and reset.

Features and Benefits

Transponder technology for presence detection
Coded switch
Dual-channel operation
2 safety inputs for series connection of multiple safety switches
2 safety outputs
Safety Device Diagnostics (SDD)
Safety Device Diagnostics can be used to poll sensor information, to perform actions and to read configuration parameters
Diagnostic input for Y1 for Safety Device Diagnostics (SDD)
Signal output/diagnostic output Y32 for Safety Device Diagnostics
LED display for state of actuator detection, state of the inputs and supply voltage/fault
IP66 / IP67 protection

PSEN cs5.11 (stock no. 918-6667)

1 actuation direction with 3 approach directions: square marking for normal operating distance
M12 8 pole male connector
30 N holding force

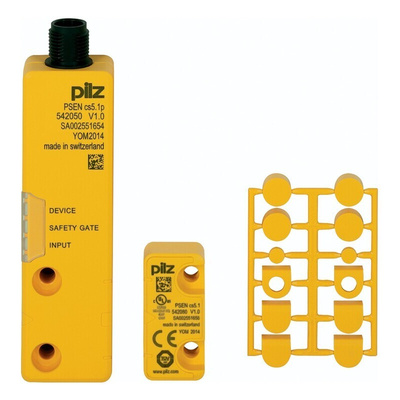

PSEN cs5.1p (stock no. 918-6661)

4 actuation directions, each with 3 approach directions: square marking for normal operating distance and triangle marking for short operating distance
M8 8 pole male connector

Caution

The safety level PLe (Cat. 4)/SIL CL 3 is only achieved if the safety outputs use 2-channel processing.

Standards

EN 60947-5-3; EN 62061 SIL CL 3; EN ISO 13849-1 PLe Cat. 4; EN ISO 14119 Coding level Low, Type4.

Approvals

CE, TÜV, UL/cUL, FCC, IC, ECOLAB.

Supplied with

Actuator.
