0762590RS, GCE Blow Torch Nitrogen, Регулятор

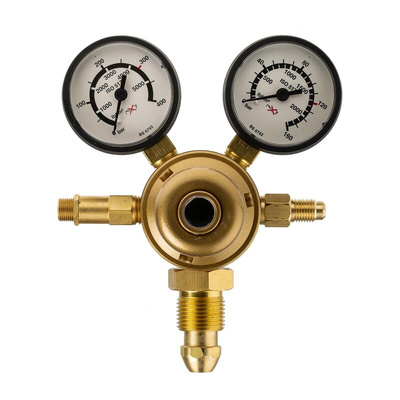

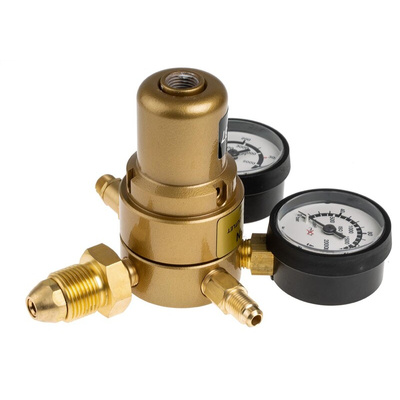

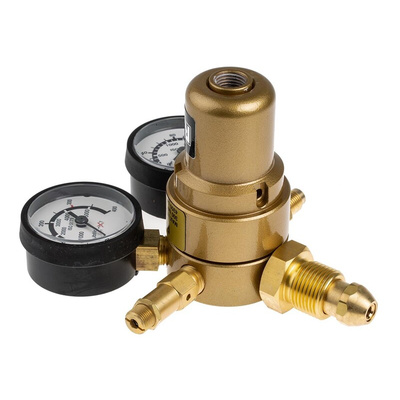

GCE Jet Control 600/S Series High Pressure Cylinder Regulator

Jet Control 600/S series high-pressure cylinder regulators are single stage, two gauge regulators. The cylinder regulators are used in oil refineries, refrigeration laboratories and industrial processes. The regulators are excellent for use where you require a precise and stable delivery of high-pressure industrial gases. 600/S series have been designed and tested to operate on a maximum inlet pressure of up to 300 bar. The regulators also provide a pressure outlet of up to 52 bar. With a robust design, made of top grade materials, plus controlled testing procedures which guarantee high operational safety with small molecular gases.

FEATURES and BENEFITS:

Manufactured from high tensile brass

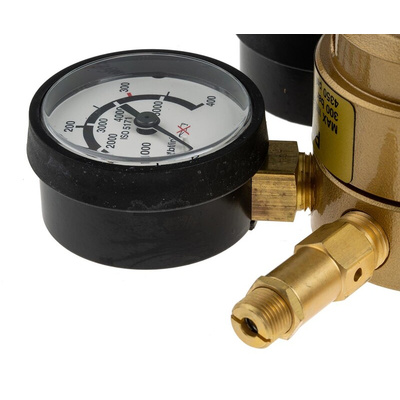

Extra safe accurate bulkhead gauges 50 mm
Double layer high grade stainless steel diaphragms
Efficient metal filters
Trouble free operation
Prolonged regulator service life
Transparent powder painted surface
High corrosion resistance
Body, bonnet, inlet stem made from high tensile
Technical data marked on the rear of the body
Outlet connections compatible with Parker fittings
Bronze bush reduces friction
T-bar for easy pressure setting
JIC Fitting outlets
Meets the needs of heating, ventilation and air-conditioning (HVAC) trades

TECHNICAL DATA:

Brass body and bonnet chemically stabilised
40 mm diameter diaphragm
Encapsulated valves sealed by high grade PA
Pressure gauges scale in Bar, accuracy class 2.5%

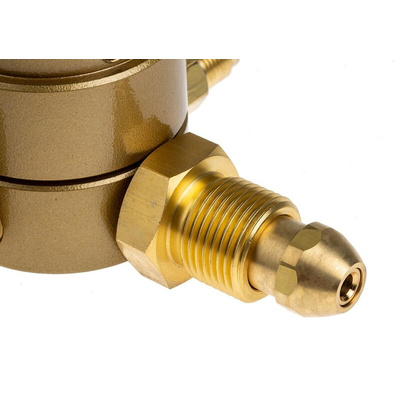

Inlet stem and nut – high tensile brass to BS-341
Safety valve is not present must be an independent part of a downstream gas line
Stainless steel T-bar, brass pressure adjusting screw

Standards

BS-341
