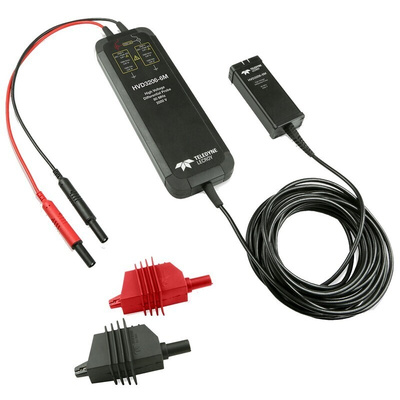

Teledyne LeCroy High Voltage Differential Probe HDV3206-6M

Teledyne LeCroy 2kV, 120 MHz high voltage differential probe HVD3206-6M is specifically designed for 1500 V dc solar photovoltaic (PV) measurements per the IEC/EN 61010-031:2015 standard. The CMRR is exceptional out to very high frequencies, greatly improving measurement capability in noisy, high common-mode environments found in power electronics. The high CMRR combined with low probe noise and high offset capability enables measurement of very small control signals floating on high common-mode voltages. HVD probes provide 1% gain accuracy for precise voltage measurements. AutoZero capability ensures further measurement precision by allowing small offset drifts to be calibrated out of the measurement. The ProBus interface provides power and communication to the probe, eliminating the need for a separate power supply or batteries. Attenuation is automatically selected based on oscilloscope gain range (V/div) setting.

Features and Benefits

The world's only 2 kV CAT safety rated probe
The only 1500 V dc safety rated probe per IEC/EN 61010-031:2015
Exceptional common-mode rejection ratio (CMRR) across a broad frequency range
1% gain accuracy
High offset capability at both high and low attenuation
AC or DC coupling
ProBus active probe interface with automatic scaling
Auto-zero capabilities
Wide oscilloscope compatibility

Note

This is the version of the HDV3206 which comes with a 6 m lead. Please see 910-0992 for the version with 2 m lead.

Supplied with

Safety alligator clips (1 red, 1 black), plunger pincer clips (1 red, 1 black), plunger hook clips (1 red, 1 black), plunger alligator clips (1 red, 1 black), spade terminals (1 red, 1 black), 6 kV safety alligator clips (1 red, 1 black)
