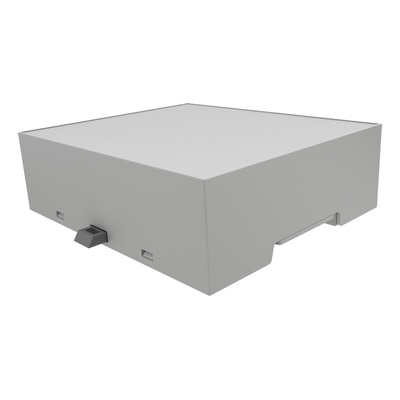

35.0614000.BL, Italtronic DIN Rail Enclosure Enclosure Type 6M XTS Compact Series , 90 x 32.2mm, ABS DIN Rail Enclosure, Корпус

9188950
Номер производителя: 35.0614000.BLПроизводитель: Italtronic
Цена за шт.
4387.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Modulbox XTS Compact

The Modulbox Compact XTS is a DIN Rail mountable enclosure made from a self-extinguishing PC/ABS blend. This new addition to the Italtronic range has its height reduced to approximately 32 mm. That apart, it is similar to the Modulbox XTS enclosure and can be equipped with the same electronic boards. With simple spacers or pins, another PCB can be fitted to the top of the enclosure.
The Modulbox Compact XTS is available in 24 enclosure kits divided into 3 versions.

Features and Benefits

Version A allows terminal blocks/connectors to be mounted on either side of the enclosure
Version B has one open side for terminal blocks/connectors and one high shoulder to increase internal volume for components
Version C has two high shoulders offering increased volume for components
All 3 have a top panel produced as part of the mould (non-removable)

Applications

The Modulbox XTS Compact is designed for use in various electronic and electrical applications. It can be hooked on the GUIDE EN 60715 (made in conformity with standard DIN 38880) or can be fixed to the wall.

Note

Versions A and B utilise the terminal covers used with the standard Modulbox XTS.

Supplied with

Base, cover and DIN Rail hook.

Техническая спецификация
pdfDatasheet
Встречающиеся стандарты:
EN 60715
Высота:
32.2мм
Длина:
90мм
Корпус - материал:
ABS
Корпус - тип:
DIN Rail Enclosure
Размеры:
90 x 32.2mm
Серия:
6M XTS Compact
Цвет:
Серый
