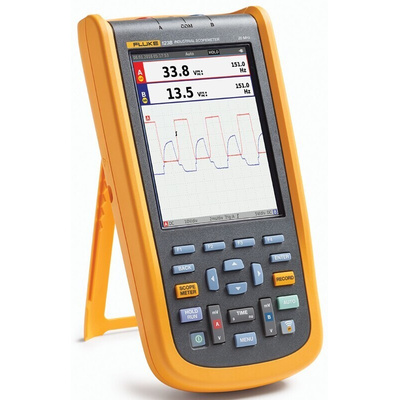

FLUKE-125B/UK, Fluke 125B ScopeMeter 120B Series Digital Handheld Oscilloscope, 2 Analogue Channels, 40MHz

Fluke ScopeMeter Oscilloscope

The Fluke 125 series, 2-channel, 40MHz is a UK plug type compact scopemeter and an integrated test tool, with an oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. This scopemeter also integrates with Fluke connect mobile app and Fluke View for scopemeter software to enable further collaboration, data analysis and archiving of critical test information.
Note:
The 40 MHz Fluke 125B includes scope cursor measurements, power and harmonics measurements and bus health tester.

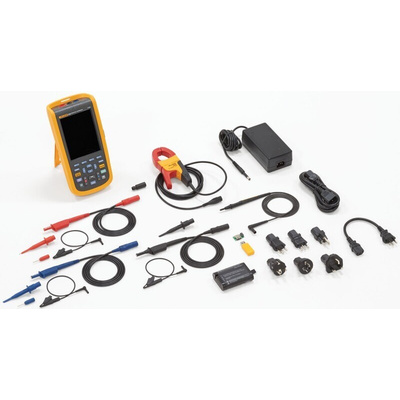

Supplied with:
Li-ion battery pack, charger/power adapter, shielded test leads (2) with ground leads, black test lead, red and blue hook clips, banana to BNC adapter, carry case,
Fluke View for Windows software, magnetic hanger, screen protector.

Features and Benefits

Rise time is less than 8.75ns
Dual-input digital oscilloscope and multimeter
Two 5,000 counts true-RMS digital multimeter
Automatic measurements
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder event detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Connect-and-View trigger simplicity for hands-off operation
Shielded test leads for oscilloscope, voltage, resistance and continuity measurements
Measures voltage, current and power harmonics
Up to 7 hours of rechargeable battery operation

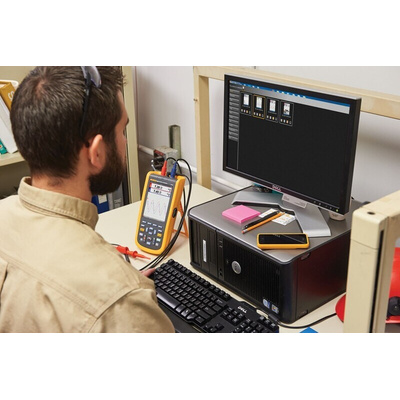

External optically isolated USB interface to transfer, archive and analyse scope or meter data
Rugged compact case
Fluke 125B gives bus health and power measurements

Applications

Industrial equipments

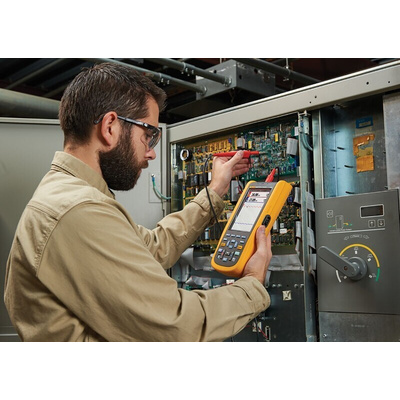

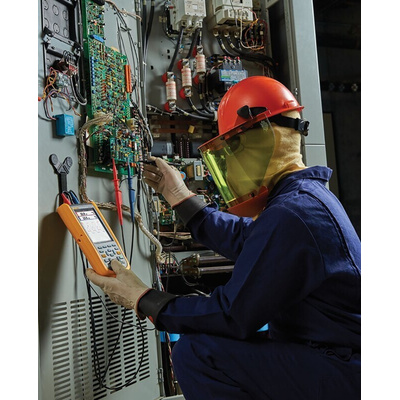

Electro-mechanical troubleshooting and maintenance

Certifications

IP51 rated
IEC 61010-1 approved
Pollution Degree 2, IEC 61010-2-033
CAT III 750V
CAT IV 600V
