Seeit FLASHPRO, Serial Components Programmer for EEPROM 24C / 25C, SPI FLASH 25xxxx Programmer, ZIF16 Socket

FLASHPRO

I2C EEPROMs 24xxx AND SPI FLASHs 25xxx programmer SUPPORT ZIF16 SOCKET, TEST CLIP, ON USB PORT

Introduction:

FLASHPRO is a serial components programmer. It can support standards EEPROMs i2C bus from 24C01 to 24C4096, (24AAxx/24Cxx/24FCxx/24LCxx/24WCxx family), as well as standards SPi FLASHs, from 8Mbytes to 128Mbytes (25Dxx/25DFxx/25Fxx/25FLxx/25Lxx/25LVxx/25Pxx/25Qxx/25VFxx/25Xxx family). The software, easy to use, allows to read, erase, write, verify the BIOS computer memory, TV or DVD EEPROMs, routers, etc... The FlashPro connects to the USB port of any compatible PC and does not require any external power supply. You can select the power supply of the component (3,3V / 5,0V) by a switch. Support for Windows XP / VISTA / 7 / 8 / 10 /11 (32 - 64 bits).

Features:

Accepts standard file formats: BINARY, INTEL (Extended) HEX.
Read / Write / Blank-Check Write / Verify / Blank-Check / Erase functions.
Support low voltage devices from 3,3V to 5,0V, (switch).
Supports Windows 98 / ME / 2000 / XP / VISTA / Windows 7 /8 / 10 /11 (32-64 bits).

Hardware & Electrical specifications:

Dimensions package : 188 x 115 x 34mm, Weight : 195g.
Power supply on USB port.
Interface : connect to laptop or PC throught USB port (USB 1.1, 2.0 or higher).

Item includes:

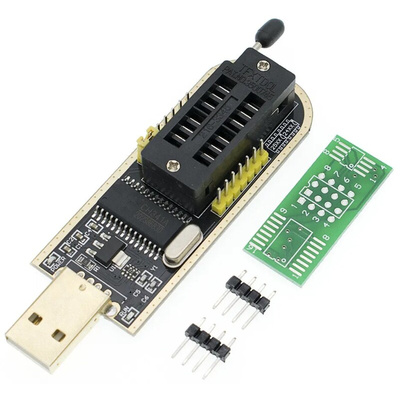

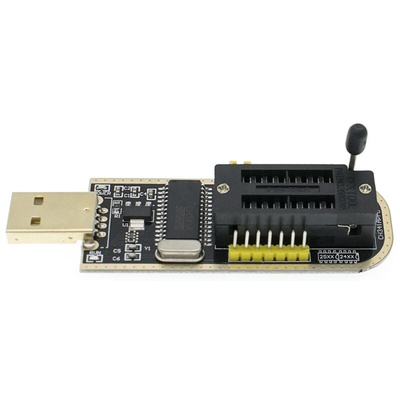

Programmer with ZIF16 socket.
USB cable type A-A.
Test clips and PCB accessories.
Software on CD-ROM.
User manual in English and French.
