XGECU-T48, Seeit MINIPRO-TL866A, Universal Programmer for EEPROM, EPROM, Microcontrollers, SPI FLASH, ZIF40 Socket and ICSP Cable

XGECU-T48 (Replace TL866II+)

UNIVERSAL PROGRAMMER FOR EPROM / EEPROM / SPI FLASH, AND MICROCONTROLLERS, ZIF40 SOCKET OR ISP16 CONNECTOR, ON USB PORT

Introduction:
The XGECU-T48 is a universal programmer which supports more than 34000 components. Its device list contains all the manufacturers of FLASHs memories who use SPI serial acces mode until 256Gb, EMMC and NAND Flash, EPROMs and FLASHs EPROMs which use parallel acces mode (Vxx from 1,2V to 25V), standard microcontrollers manufacturers (Atmel, Intel, Microchip, NXP, Philips, SST, Syncmos et Winbond), PLD/GAL from Lattice, as well as SRAM and 74 logic tests. Its program components are the fastest than others programmers because it supports Fast SPI algorithm mode. Thanks to its USB port, this programmer does not require any external power supply. It is also protected against shorts and overvoltage. It is possible to program the components on it ZIF40 socket or with 16 wires multi-functional ISP connector. This programmer is very practical to use with a laptop computer at the office, on a business trip, or for automotive application. Support for Windows XP / VISTA / 7 / 8 / 10 / 11 (32 and 64 bits).

Features:
Accepts standard file formats: BINARY, INTEL (Extended) HEX, INTEL HEX16.
Read / Write / Blank-Check Write / Verify / Blank-Check / Erase functions.
Support Vcc power voltage from 1,8V to 6,5V.
Support high Vpp programming voltage : 9,0V to 25,0V.
Protected against shorts current and overvoltage.
Test the common logic integrated circuit and this test can be located the errors of logic gate circuit.
Supports Windows XP / VISTA / Windows 7 / Windows8 / Windows10 / Windows11 (32bit and 64bit).

Hardware & Electrical specifications:
Dimensions board : 105 x 65 x 35mm, Weight : 130g.
Dimensions package : 120 x 115 x 60mm, Weight : 240g.
Power supply on USB port.

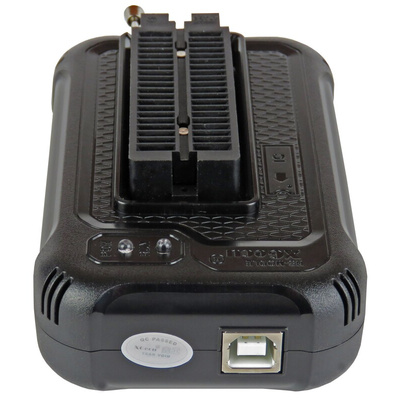

Interface : connect to laptop or PC throught USB port (USB 1.1, 2.0 or higher).

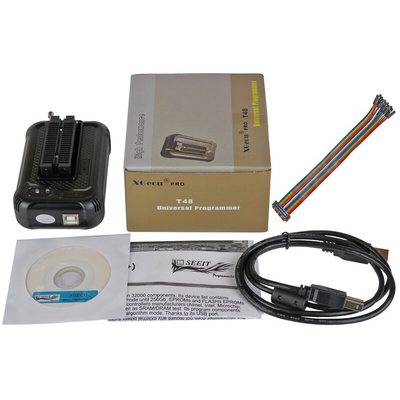

Item includes:

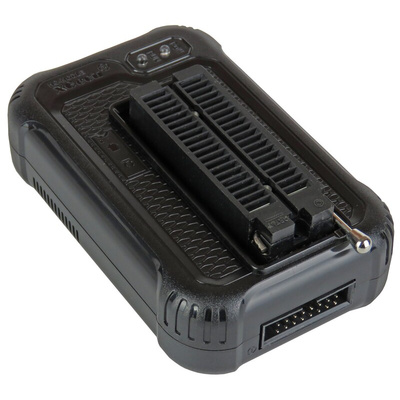

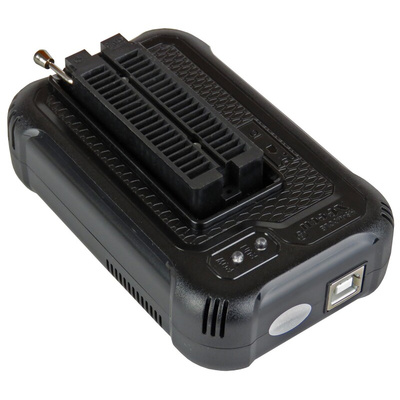

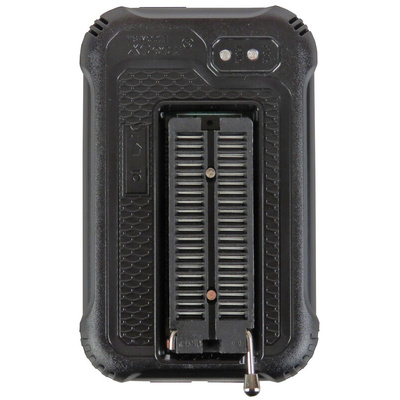

Programmer with zif 40 socket.
USB cable type A-B.

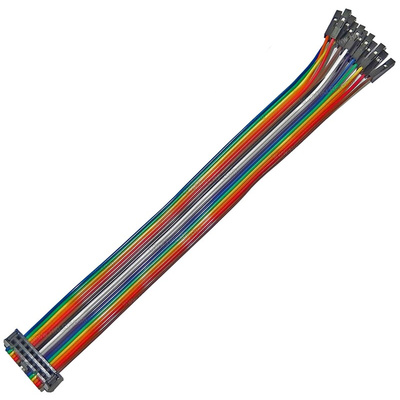

ISP cable with 16 wires.
Software on CD-ROM.
User manual in English.
