RS PRO, jack Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body, Разъем

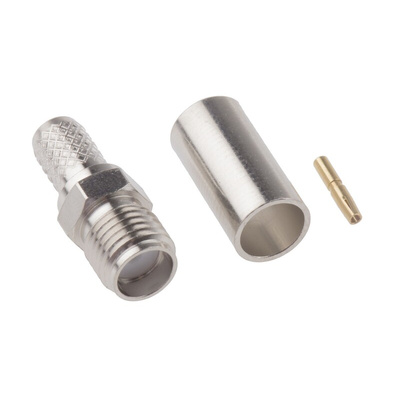

RS PRO 50 Ω Straight Cable Mounting, SMA Connector, Jack

Need a coaxial cable connector with electrical shielding and low electromagnetic interference? Choose this SMA (SubMiniature version A) connector from RS PRO. Its straight body orientation keeps connected cables aligned for applications such as internal wall work or group cable runs.
The beryllium copper contact material has high thermal and electrical conductivity to keep the current moving through the connector reliably. This material is also resistant to corrosion, so it can withstand demanding environmental conditions. The crimp termination method compresses the cables around the ferrule for a tight connection that's protected against wear.
The connector’s thread screws easily into a cable for a secure, vibration-resistant join that won't come loose. For added safety, it conforms to the Restriction of Hazardous Substances (RoHS) directive, meaning it contains only trace levels of any harmful materials.

Features and Benefits

• Straight body orientation
• Gold body plating
• No bulkhead
• RG-141A/U, RG-58/U, RG-58A/U cable types
• SMA coaxial connector type
• Beryllium copper contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• Threaded mating type
• Cable mounting type
• Operating frequency of 0 to 12.4 GHz
• Subminiature size
• Crimp termination method
• Voltage rating of 500 V

Dimensional Drawing

RS Pro Datasheet
