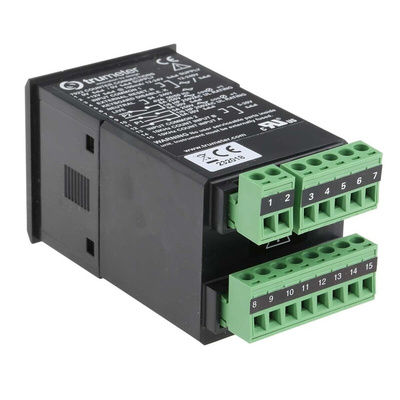

Trumeter 7922, 6 Digit, LCD, Counter, 10kHz, 10 → 26 V dc, 85 → 265 V ac, Счетчик

LCD Preset Counter with Prescaler- 7922 Series

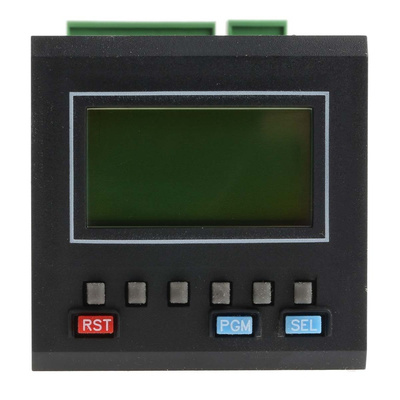

This versatile preset LCD counter is highly programmable and features a prescaler, quadrature input and EEPROM data storage. The display is a supertwist high visibility backlit LCD that can be viewed from any angle, making this counter highly suitable for any application. The count is shown on the main display, while the preset value is shown on the lower display.

• Simple programming via menu driven display
• 2 Rows of 6-digits, High visibility supertwist LCD display
• Backlight programmable ON, OFF or Auto
• Configure for quadrate or uni-directional input, dual preset or single preset with batch preset
• 40 years data retention with no power
• Programmable decimal point up to 3 places
• Operates from 85-265 V ac or 10-26 V dc
• 12 V dc output to drive a sensor (when AC powered)
• Wide range of prescaling
• Opto-isolated inputs
• Output relay contacts rated at 5A
• Output can be set to latch or pulse with programmable pulse duration
• IP65 DIN case
