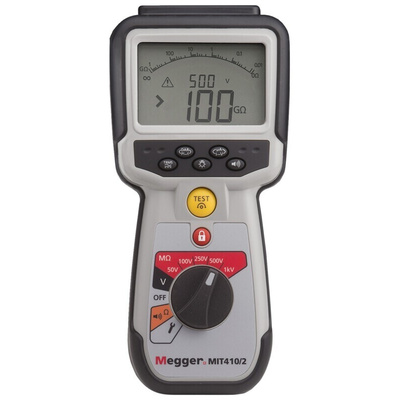

1004-735, Megger MIT410 2, Insulation Tester, 1000V, 200GΩ, CAT IV, Измеритель сопротивления изоляции

9214514
Номер производителя: 1004-735Производитель: Megger
Цена за шт.
187500.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Megger Insulation and Continuity Testers

The Megger MIT410/2 200Gohm insulation and continuity testers have a redesigned case, back-stand and 6-cell battery compartment with separate fuse access. Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry-standard 10-20%. All primary results are displayed in the larger digital display and repeated on the analogue arc. Auxiliary test information such as frequency, leakage current, insulation or circuit voltage is displayed in the smaller secondary digital display. A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps. Where application-specific test voltages are required that do not appear in the standard ranges.
Supplied with
Hard carry case complete with red/black silicone test lead set with probes, 1 red & 1 black crocodile clip, 1 SP5 Remote Switch Probe, information CD and 6 x AA Alkaline Batteries

Features and Benefits

Insulation testing up to 1000V
Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and result storage
Stabilised insulation test voltage (New)
Single range, faster continuity testing from 0.01ohm to 1Mohm (New)
600V TRMS AC and DC voltage measurement
Live circuit detection and protection
User variable insulation test voltage from 100V to 1000V (New) depending on model
Test result storage and Bluetooth® downloading depending on model
Rechargeable options for mains and car charging (New) depending on model

Applications

Industrial
Cable Testing
Motor Testing
Automotive
ESD
Panel Building
Avionics
Maintenance

Certifications

CAT IV 600 V
IP54 rated

Техническая спецификация
pdfDatasheet
Вес:
775гр
Высота:
220мм
Длина:
92мм
Испытательный ток:
205мА
Источник питания:
Батарея
Категория безопасности:
CAT IV 600В
Категория безопасности напряжения:
600В
Категория безопасности уровня:
CAT IV
Максимальное измерение сопротивления изоляции:
200ГОм
Максимальное испытательное напряжение:
1000В
Минимальное испытательное напряжение:
10В
Модель р:
MIT410 2
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-20°C
Размеры:
92 x 50 x 220мм
Срок службы батареи:
2200 (OFF) Test @ 55 s, 2200 (ON) Test @ 5 s
Тип батареи:
Alkaline
Тип дисплея:
Аналоговый, Двойной цифровой
Тип тестера:
Insulation Tester
Ширина:
50мм
