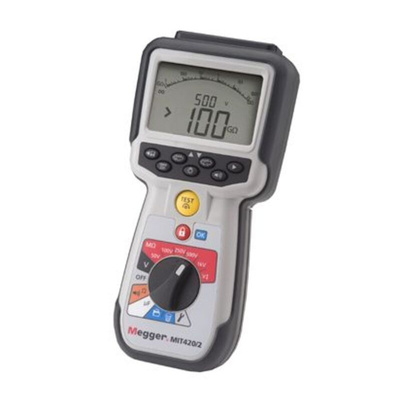

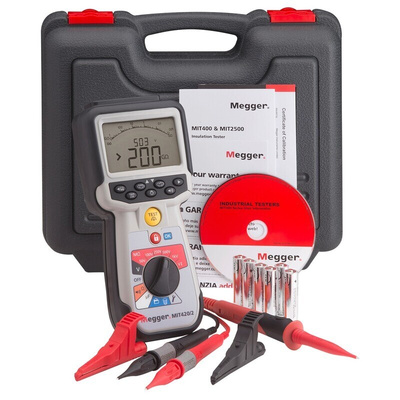

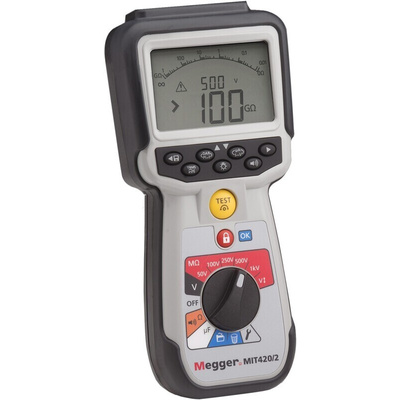

1004-739, Megger MIT420 2 Insulation Tester, 10V Min, 1000V Max, 200GΩ Max, CAT IV, Измеритель сопротивления изоляции

Megger Insulation and Continuity Testers

The Megger insulation and continuity tester has a redesigned case, back-stand and 6-cell battery compartment with separate fuse access. Insulation testing is enhanced with feedback controlled test voltages to limit over-voltage up to 2%, rather than the industry standards i. e. 10-20%. All the primary results are displayed in the larger digital display and repeated on the analogue arc. Auxiliary test information such as frequency, leakage current, insulation or circuit voltage is displayed in the smaller secondary digital display. A variable range is added to allow any intermediate voltage between 50V and 1000 V in 10V steps where application-specific test voltages are required that do not appear in the standard ranges.

Features and Benefits

Insulation testing up to 1000V and 200Gohm range
Polarisation index, dielectric absorption ratio, variable test voltage and result storage
Stabilised insulation test voltage (New)
Single range, faster continuity testing between 0.01ohm and 1Mohm (New)
600V TRMS AC and DC voltage measurement
Live circuit detection and protection
User variable insulation test voltage between 100V and 1000V (New) depending on model
Test result storage and Bluetooth® downloading depending on model
Rechargeable options for mains and car charging (New) depending on the mode

Applications

Industrial sites
Cable testing
Motor testing
Automotive
ESD
Panel building
Avionics
Maintenance sites

Certifications

CAT IV 600V
IP54 rated
