Schneider Electric 2.2kΩ Rotary Potentiometer Panel Mount, SZ1RV1202

Schneider Electric Plug-In Potentiometer, 22mm Cutout - Altivar 320 Series - SZ1RV1202

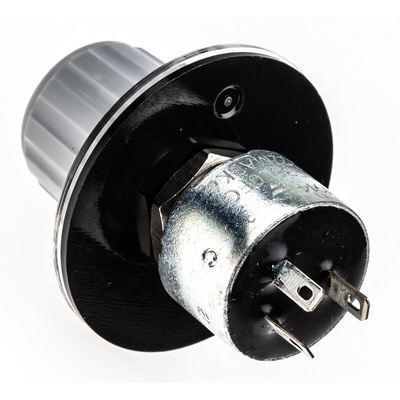

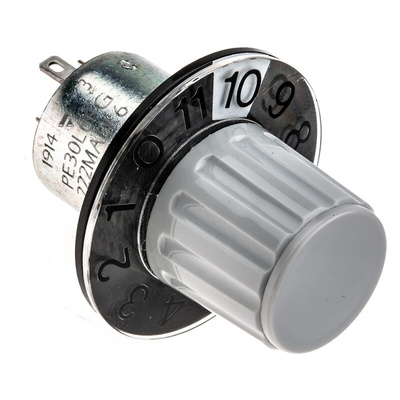

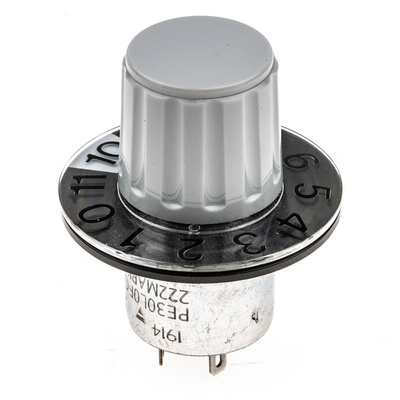

Adjust your electrical circuits with this rotary potentiometer from Schneider Electric. It has a dozen options for setting controls and the faceplate is clearly numbered from 0 to 11. The simple plug at the rear of the device allows for hassle-free installation by panel mounting, with no complex wiring or specialist tools needed. You'll find rotary potentiometers like this one used to control volume in audio equipment.

Features & Benefits

• IP65 (ingress protection) rating indicates the unit can withstand dust and low-pressure water jets
• 22mm cut-out diameter is compatible with a broad variety of rotary switches and relays
• Low power consumption for energy efficiency

Applications

• Operating panels
• Light fixtures
• Mechanical devices

Where can I mount this potentiometer?

The unit has a mounting hole with a depth of 9.5mm, making it suitable for small, compact devices with minimal wiring.

What direction can I turn this rotary device in?

Turn this rotary device to the right to increase the number shown on the dial and to the left to reduce the number. When you reach zero or 11, a stop means you need to turn the dial in the opposite direction.

Potentionmeter

SZ1RV1202 Datasheet

Datasheet SZ1RV1202
