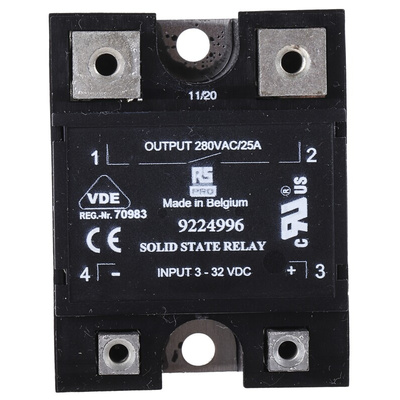

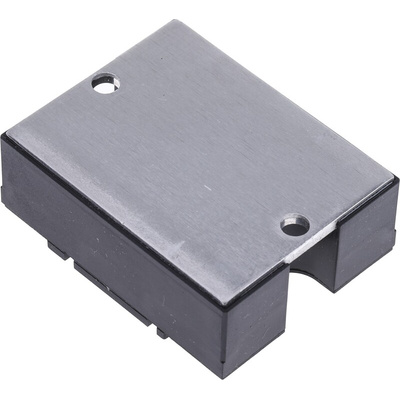

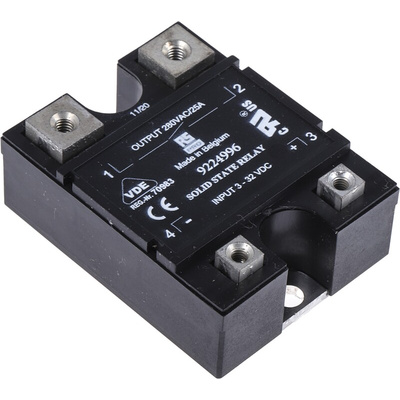

RS PRO 25 A RMS SPNO Solid State Relay, Zero Cross, Panel Mount, Thyristor, 280 V AC Maximum Load
When you need to open and close contacts within circuits, choose this RS PRO solid-state relay. It's an ideal solution for ensuring your appliances and instruments operate effectively. Thanks to its compact design, it's suitable for use in areas where space is limited.
The robust housing ensures that your circuits and contacts will be well-protected from any potential external damage. This means the item is safe to use in both commercial and domestic settings. The relay is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.
Features and Benefits
- SPNO (single pole normally open) contact configuration
- Control voltage range of 3 to 32 V DC
- Dimensions of 57.2 (length) x 44.5 (depth) x 23 mm (height)
- Load voltage range of 24 to 280 V AC
- Maximum load current of 25 A RMS (root mean square)
- Maximum turn-on time of 11 ms
- Minimum load current of 0.2 A
- Panel mounting type
- One pole
- Off-state leakage current of 12 mA
- Operating temperature range of -20°C to +80°C
- Thyristor output device
- AC relay type
- Special features include switching inductive loads like electric motors and valves (R-types) as well as resistive loads like heaters and lamps (Z-type), hockey puck housing
- CE (European Conformity), cULus (Underwriters Laboratories standards of Canada and US) and VDE (Association for Electrical, Electronic & Information Technologies) standards met
- Zero cross switching type
- Screw terminal type
RS Pro Datasheet
