RS PRO Solid State Relay, 25 A rms Load, Panel Mount, 480 V ac Load, 32 V dc Control, Реле

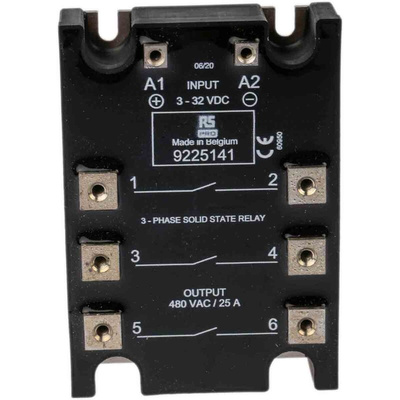

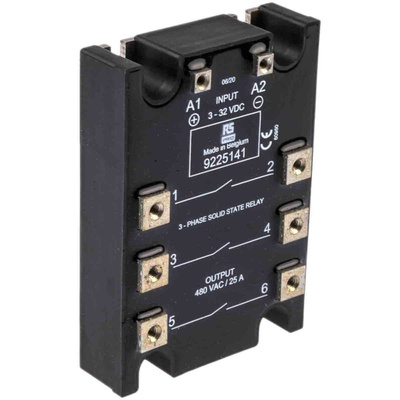

RS PRO 25 A rms 3P-NO Solid-State Relay, Zero Cross, Panel Mount, Thyristor, 480 V AC Maximum Load

This solid-state relay from our trusted RS PRO series is designed to switch both AC or DC currents. Faster and longer-lasting than its electro-mechanical counterparts, this product is the clear choice to keep a system running efficiently.

With no moving parts to wear out, this solid-state relay is reliable. It's a three-phase relay that can switch loads of up to 480 V AC, making it ideal for heavy-duty motors. This product has high noise immunity for resistance to electromagnetic interference and internal overvoltage protection that becomes effective at 1000 V. It also has a 45 A current rating, so it won’t burn out anytime soon. Panel mounting with screw connections makes it easy and quick to install.

Tested to meet our exacting standards, this product is safe and durable. Solid-state relays are used in a wide variety of electrical load-switching applications, including professional cooking equipment, packaging machinery and lighting systems.

Features and Benefits

• 3-pole AC solid state relay
• 3P-NO contact configuration
• Zero cross switching
• Panel mounting

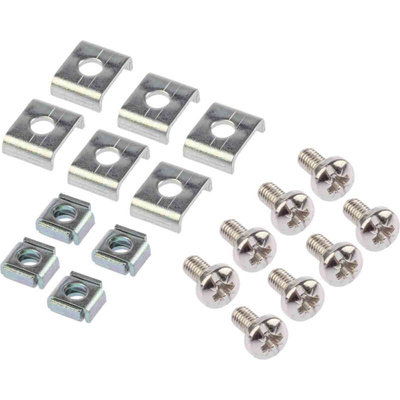

• Screw terminals
• 3P-NO contact configuration
• Thyristor output
• Maximum turn-on time of 11 ms
• Dimensions of 107 mm x 73.5 mm x 27mm
• Load current range of 0.2 A to 25 A rms
• Load voltage range of 24 V AC to 480 V AC
• Control voltage range of 3 V DC to 32 V DC
• Operating temperature range of -20°C to +80°C
• Off-state leakage current of 10 mA
• RoHS (Restriction of Hazardous Substances) compliant so no hazardous substance is present in excess of 0.1%
• Conforms to the CE standard for compliance with EU legislation regarding health, safety and environmental protection
