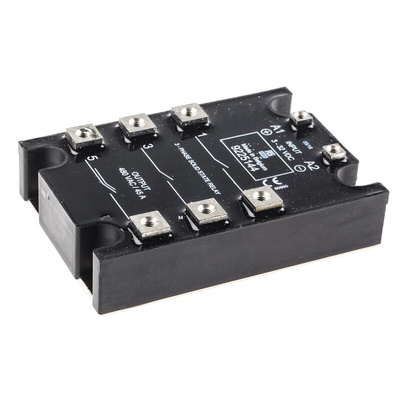

RS PRO 45 A RMS 3 P-NO Solid State Relay, Zero Cross, Panel Mounting, Thyristor, 480 V AC Maximum Load
This RS PRO solid state relay opens and closes contacts in circuits. Use it to relay power to instruments and appliances.
A compact design enables you to install the unit in narrow spaces. Robust housing protects your contacts and circuits from external damage. The item is suitable for domestic and commercial use. This relay conforms to Restriction of Hazardous Substances (RoHS) requirements, meaning it contains only minimal amounts of any harmful materials.
Features and Benefits
• Contact configuration of 3 P-NO (Pole-Normally Open)
• Control voltage range of 3 to 32 V DC
• Dimensions of 107 (length) x 73.5 (depth) x 27 mm (height)
• Load voltage range of 24 to 480 V AC
• Maximum control voltage of 32 V DC
• Maximum load current of 45 A RMS (root mean square)
• Maximum load voltage of 480 V AC
• Maximum turn on time of 11 ms
• Minimum control voltage of 3 V DC
• Minimum load current of 0.4 A
• Minimum load voltage of 24 V AC
• Panel mounting type
• Three poles
• Off-state leakage current of 10 mA
• Operating temperature range of -20 to +80°C
• Thyristor output device
• AC relay type
• CE standards met
• Zero cross switching type
• Screw terminal type
RS Pro Datasheet
