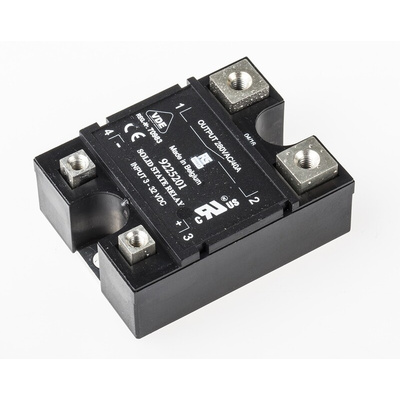

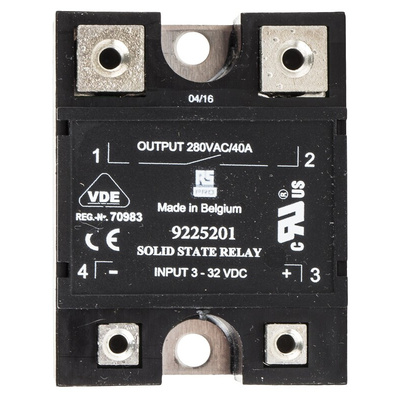

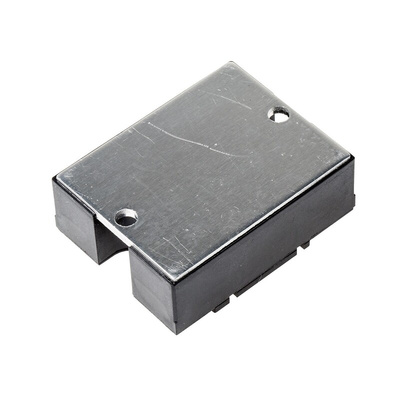

RS PRO 45A Zero Cross SPST Solid State Relay
A robust and compact solid state relay with a Single Pole Single Throw (SPST) configuration designed with zero cross switching to substantially suppress noise generated due to sudden rises in load current.
Unlike other types of relays solid state relays (SSR) contain no moving parts making them more reliable and significantly quieter.
The compact design of the zero cross relay makes it ideal for use in cramped and tight spaces and the robust impact resistant housing protects the contacts against any external damage
Suitable for use in both commercial and domestic and specifically suited for switching resistive loads and ideal for use in appliances such lamps and heaters.
Features and Benefits
- Solid state relay
- SPST configuration
- Zero cross switching
- AC load/ DC input
- Constant current input resistance
- Thyristor output device
- Robust impact resistant housing
- Panel mount
- Control voltage range of 3 to 32 V DC
- Dimensions of 57.2 (length) x 44.5 (depth) x 23 mm (height)
- Load voltage range of 24 to 280 V AC
- Maximum load current of 40 A RMS (root mean square)
- Maximum turn-on time of 11 ms
- Minimum load current of 0.4 A
- Off-state leakage current of 12 mA
- Operating temperature range of -20°C to +80°C
- Screw terminals
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Техническая спецификацияRS Pro Datasheet
