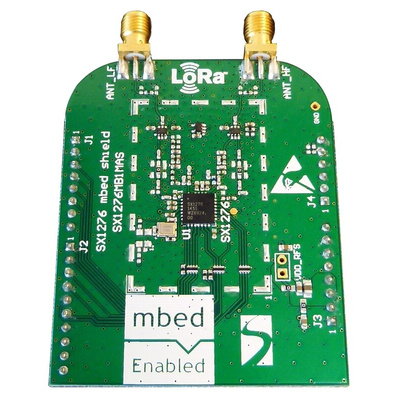

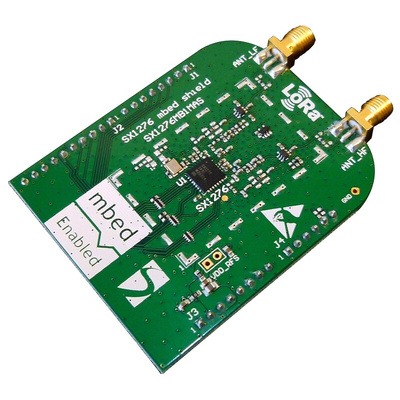

SX1276MB1MAS LoRa™ Transceiver mbed Shield
The SX1276MB1MAS is a low-power 433/868MHz dual-band transceiver Shield-format evaluation module from Semtech featuring their long-range LoRa™ technology. The on-board SX1276 transceiver device offers wide area communication with extreme tolerance of interference. LoRa technology is ideal for Internet of Things (IoT) applications, enabling connection to LoRaWAN™ gateways. Example applications include sensor circuits and wireless battery-powered devices.
SX1276 dual-band RF transceiver set up with operating frequencies of 433 and 868MHz
LoRa™ Chirp Spread-Spectrum technology
PE4259 RF antenna switches
Controlled via serial SPI bus @10Mbps
UART and I²C serial busses available for sensor connections
mbed compatible headers
Split Rx/Tx architecture for optimum performance
2 x SMA antenna connectors
Note
More information from mbed developer website: https://developer.mbed.org/components/SX1276MB1xAS/
Техническая спецификация
