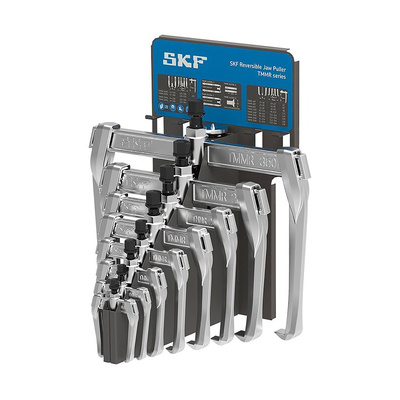

TMMR 8F/SET, SKF Hand Bearing Puller, 23 → 350 mm Capacity, 10-Piece

SKF Hand Bearing Puller, 10 Pieces - TMMR 8F/SET

Do you need a jaw puller capable of handling a wide range of bearing sizes? This SKF hand bearing puller is the ideal tool for the job, with eight reversible pullers suitable for the internal and external extraction of bearings and components. Its self-locking arms make it easy to adjust the width of its large gripping range, while the rotating spindle-tip cone reduces the risk of shaft damage. There's also an option to test the puller's full load capacity without damaging its arms.

• Reversible jaw puller type
• 10-piece bearing puller set containing LGEV 2/0.035, TMMR 120F, TMMR 16/35 XL-5, TMMR 160F, TMMR 200F, TMMR 250F, TMMR 350F, TMMR 40F, TMMR 60F, TMMR 80F
• Capacity of 23 mm to 350 mm
• Chrome-plated arms and beam with good corrosion resistance
• Maximum withdrawal force of 40 kN
• Effective arm length of 98 mm

Application Information

• Automotive industries
• Food and beverage industries

What's the benefit of a reversible jaw puller?

A reversible jaw puller can grip on both the outside and inside of a component, offering enhanced stability and reducing the risk of damage to shafts when extracting bearings.
