102078 FAZ-C1/1-NA, Eaton xEffect MCB, 1P, 1A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, Built-in Pre-Fuse, IP20 Rating - FAZ Series - 102078 FAZ-C1/1-NA

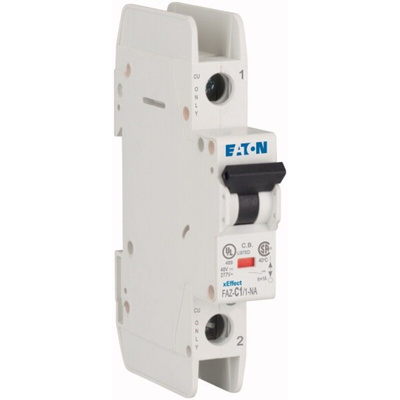

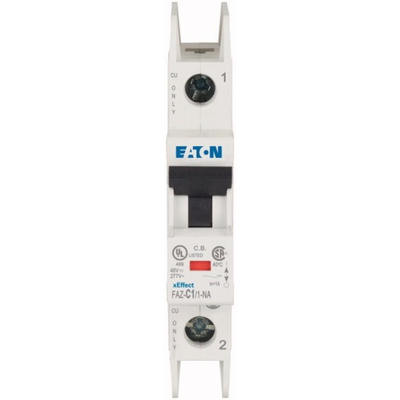

Looking to bag a breaking solution that also helps minimise system downtime? Check out this MCB from Eaton. It's a high selectivity unit so, if necessary, it can cut power using a built-in pre-fuse instead of its electromagnetic or thermal releases. This gives your circuit triple protection and minimises the need for resetting. Dual release mechanisms and type-C characteristics mean it offers overload and short-circuit protection to safely de-energise whenever your circuit's supplied with between five and ten times the 1A rated value. As a result, this is a practical choice for carrying the burden of high-load applications. You'll find MCBs like this installed in control panels, keeping watch for high surges.

• Instantaneous breaking means it acts without hesitation to protect you and your equipment
• Practical and versatile three-position DIN rail mounting for speedy installation without tools
• Colour-coded contact display helps you check system status without breaking your stride

What standards do this MCB meet?

The MCB offers switching and breaking in line with European and American standards. Its IEC/EN 60947-2, IEC/EN 60898-1 and UL 1077 approvals mean you can trust it to trip currents up to 10kA without damage.

Note

Eaton formerly known as Moeller

FAZ Series

Datasheet - 102078 FAZ-C1/1-NA

Instruction Sheet - FAZ Series
