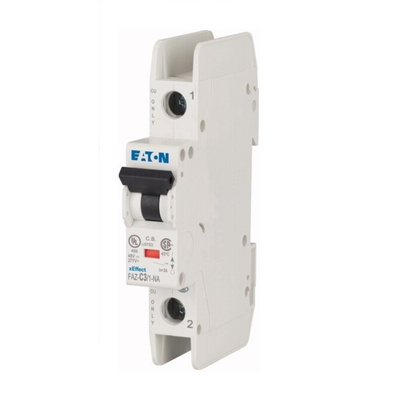

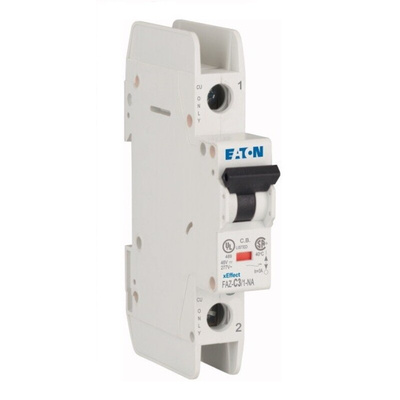

102081 FAZ-C3/1-NA, Eaton xEffect MCB, 1P, 3A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 3A Current Rating, C Curve - xEffect Series - 102081 FAZ-C3/1-NA

Choose this C Curve MCB from Eaton for applications where medium levels of inrush current occur. Its current-limiting design provides fast short-circuit interruption, which reduces let-through energy and helps prevent damage to equipment. A high endurance of up to 20,000 operating cycles means you can rely on this unit to offer a long service life. The width of 17.7mm per pole makes it easier for you to maximise packing efficiency in your control cabinet. This miniature breaker meets UL 489 standards, so it's suitable to use for branch circuit protection of devices like external motors and heating systems.

Features & Benefits

• Screw terminals hold wiring securely, reducing maintenance needs
• IP20-rated enclosure is finger-touch safe to reduce the risk of electric shocks during installation and handling
• Indicator light lets you easily see its contact position for quick inspection
• Snaps onto a DIN rail for quick and convenient mounting

How do I reset this MCB?

If your MCB trips, it's easy to reset it manually by flipping the toggle switch.

What's the breaking capacity of this MCB?

This MCB has a breaking capacity of 10kA. This is the power level that the unit can safely handle without suffering damage.

Note

Eaton formerly known as Moeller

FAZ Series

Datasheet - 102081 FAZ-C3/1-NA
