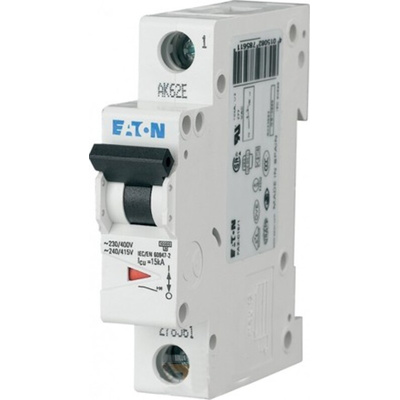

102087 FAZ-C10/1-NA, Eaton xEffect MCB, 1P, 10A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity

Eaton Miniature Circuit Breakers (MCBs) - FAZ Series

The FAZ series of miniature circuit breakers (MCBs) from Eatons xEffect range has a current limiting design providing fast short-circuit interruption that reduces the let-through electrical energy and overload currents that can damage the circuit.

Ideally suited to control circuits and electrical distribution boards the FAZ series of MCBs offer a wide range of diverse protection characteristics, protecting your electrical equipment against overload damage. For additional safety, the MCB breaker cannot be defeated by holding the handle in the ON position, these MCBs are also finger proof and have a trip-free mechanism.

These MCBs have both a thermal and electromagnetic release, with rated currents of 0.16 A up to 63 A and a switching capacity of 15kA or 10kA depending on the device type.

The FAZ series includes miniature circuit breakers, interlocks, busbars and snap-on accessories including auxiliaries and tripping modules.

Features and Benefits

• Thermal-magnetic overcurrent protection
• Power to the miniature circuit breakers can be fed from the line or load side
• Clear indication of contact position via front switch toggle
• Easy installation on DIN rail. MCB module width of only 17.5 mm (per pole)
• Six levels of short-circuit protection, categorized by Type B, C, D, K, S and Z curves
• Small modular width of the device and accessories saves space in the panel or equipment, which can lead to cost savings
• Available in single pole up to 4 pole
• Dual rating for IEC 60947-2 standard
• MCB Module widths: 1P 17.5mm, 2P 35mm and 3P 52.5mm

Standards

IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584).
FAZ-C*/* & FAZ-S*/* = IEC/EN60947-2

IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar installations. In the UK these are traditionally known as miniature circuit breakers (MCBs), moulded case circuit breakers
(MCCBs) and also air circuit breakers (ACBs).

Standards

IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584).
FAZ-C*/* & FAZ-S*/* = IEC/EN60947-2

Eaton Miniature Circuit Breaker, 10A, 240 to 415V AC - FAZ Series - 102087 FAZ-C10/1-NA

Use this MCB (miniature circuit breaker) from Eaton to protect your cables and equipment from damaging electrical faults. It's fitted with a thermal-magnetic release and an electromagnetic release, which allow it to quickly detect both overcurrents and short circuits and disconnect the power supply. The type C trip characteristic means it quickly breaks the circuit when flow-through currents are between 5 and 10 times the 10kA rating. This makes it useful in higher-powered circuits found in large commercial buildings and industrial plants.

• Modular construction means you can combine it with auxiliary contacts and extra safety features such as shunt trips and under-voltage devices for flexible use
• Simple toggle switch design with clear red and green status indicator is simple to use
• DIN rail clip mean it's quick to install and detach from panels and boards
• Finger-proof, recessed terminals make it safe to install and maintain

What's a single-pole MCB?

An MCB with a single pole is a device that serves and protects just one circuit.

Note

Eaton formerly known as Moeller

FAZ Series
