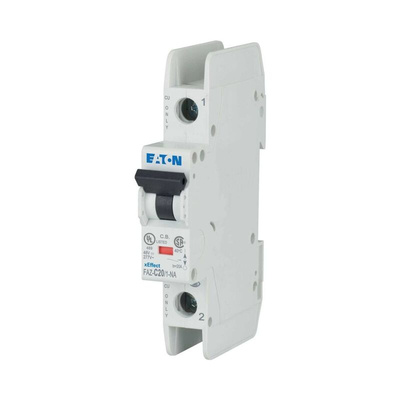

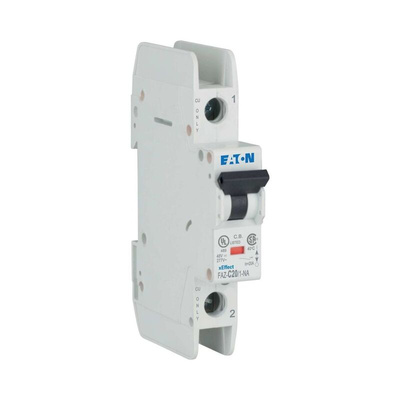

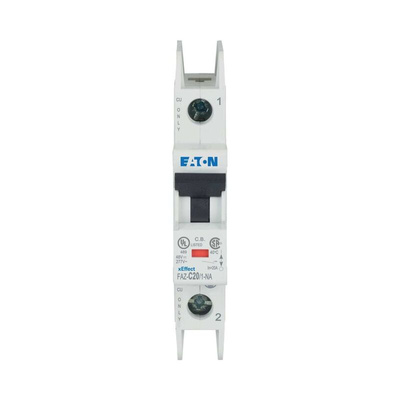

102091 FAZ-C20/1-NA, Eaton xEffect MCB, 1P, 20A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, Thermal-Magnetic Tripping Mechanism, DIN Rail Mounting - xEffect Series - 102091 FAZ-C20/1-NA

For essential electrical protection, turn to this MCB from Eaton. It stops short circuits and current overloads in their tracks using a thermal-magnetic tripping mechanism. Instantaneous breaking means no time is wasted in breaking the circuit. This unit's type-C tripping characteristics make it a good fit for commercial lighting systems, as it trips at five to ten times its 20A rated current. For an added safety boost, this MCB's IP20 rating assures you it's fingerproof.

Features & Benefits

• Single-pole design has dimensions of just 75.5 (H) x 17.7 (W) x 105mm (D) to fit into compact circuit boards
• Weighs just 121g for minimal strain on your system
• Stands up to heavy loads with a rated voltage of 240 to 415V AC
• Front-facing toggle switch gives a clear visual indicator of contact position

Where should I mount this MCB?

The circuit breaker is easy to install thanks to a clip-on, space-saving design that fits directly onto your DIN rail.

What conditions can I use this unit in?

A broad operating temperature range between -25°C and +75°C means the circuit breaker is suitable for use in harsh industrial conditions.

Note

Eaton formerly known as Moeller
