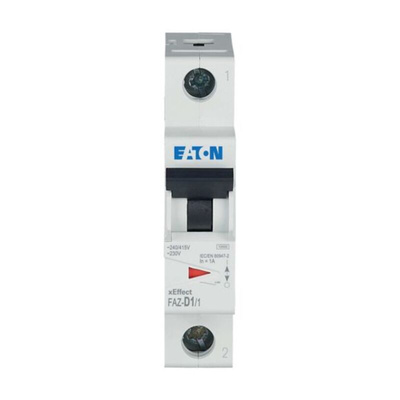

278569 FAZ-D1/1, Eaton xEffect MCB, 1P, 1A Curve D, 240V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, Toggle Switch Reset Actuator Type, Screw Terminals - FAZ xEffect Series - 278569 FAZ-D1/1

Keep a watchful eye on your electrical system with this MCB from Eaton. It's a single-pole unit that uses thermal and magnetic mechanisms to protect electric circuits against overcurrent. An instantaneous break time and a 10kA breaking capacity mean it acts quickly and effectively to shut down faults. With compact dimensions of 80 (H) x 17.7 (W) x 75.5mm (L), it slots comfortably into packed setups. Thanks to a mechanical life of 10,000 operations, you can trust it to go the distance. Devices like this are often used as a first line of protection in residential and commercial buildings.

Features & Benefits

• Snaps onto a DIN rail for speedy assembly
• Type-D tripping characteristics to trip when it receives between three and five times its 1A rating, providing high sensitivity to current surges
• Easy resetting with the front toggle switch

Is this MCB touch-proof?

Yes, it has an IP20 rating so you can touch it without risking an electric shock.

Can this MCB handle industrial conditions?

Yes, the unit has a wide operating temperature range between -25°C and +75°C meaning it withstands tough environments.

Note

Eaton formerly known as Moeller

FAZ Series

Instruction Sheet - 239216 FAZ Series

Datasheet - 278569 FAZ-D1/1
