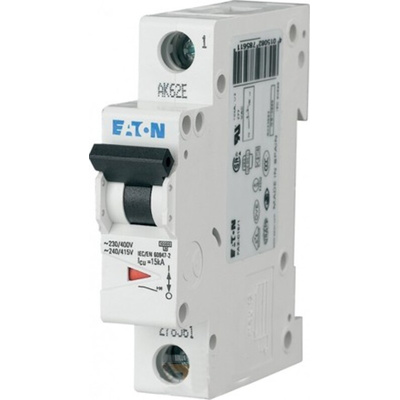

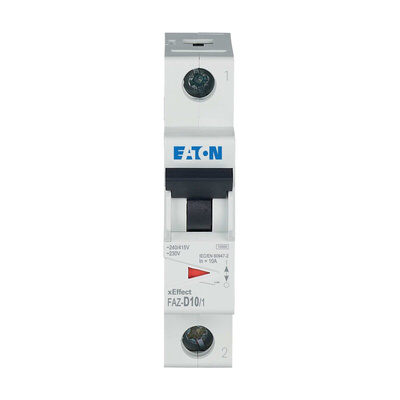

278580 FAZ-D10/1, Eaton xEffect MCB, 1P, 10A Curve D, 240V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, Integrated Short-Circuit Protection, DIN Rail Mounting - FAZ Series - 278580 FAZ-D10/1

This MCB from Eaton ably demonstrates that good things come in small packages. It's capable of handling inductive and capacitive loads and is a versatile option that's well-suited to both AC and DC currents. D-curve characteristics and a 1-pole setup mean it protects a single circuit by tripping when it receives between ten and twenty times its 10A rated value. This means it takes a significant surge to trip it, so it's robust enough for heavy-duty devices like X-ray machines or UPS. As the unit combines electromagnetic and thermal releases, you can trust it to stand up to both overload and short-circuit conditions, shielding you from shocks and your equipment from damage.

• Simple to reset with a flip of the front toggle switch
• Includes a pre-fuse that the unit can choose to sacrifice instead of tripping, to help minimise downtime
• IP20-rated, so it's safe to handle without the risk if shocks
• Three positions available for DIN mounting so quick and easy to connect without tools

What temperatures can I use this product in?

This MCB tolerates an operating temperature range of -25°C to +70°C, so you can rest assured it keeps its cool when conditions heat up.

Note

Eaton formerly known as Moeller

FAZ Series

Instruction Sheet - FAZ Series

Datasheet - 278580 FAZ-D10/1
