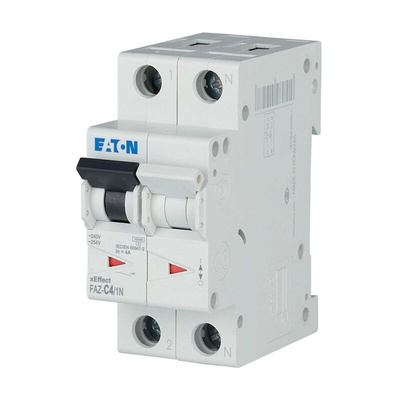

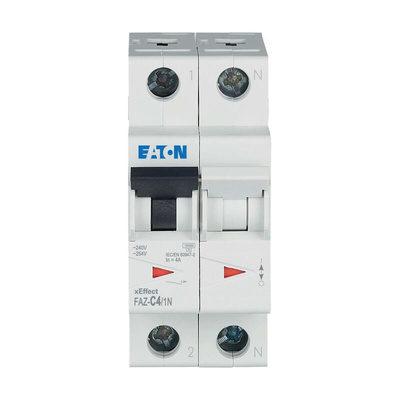

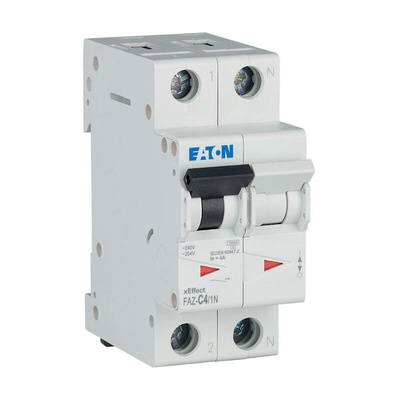

278666 FAZ-C4/1N, Eaton xEffect MCB, 1P+N, 4A Curve C, 240V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 10kA Breaking Capacity, Type-C Tripping - 278666 FAZ-C4/1N

When currents run high, this MCB from Eaton is on hand to lighten your load. It works quickly to break electrical circuits in the event of overcurrent conditions and sudden voltage increases. Type-C tripping characteristics mean it shuts off the power at three to five times its rated current of 4A for protection against big surges. A breaking capacity of 10kA means the MCB performs reliably across a broad current range without suffering damage, making it the ideal companion for high-load electrical distribution boards. Mount in a flash by snapping it onto your standard DIN rail.

Features & Benefits

• Operates reliably in a temperature range between -5°C and +40°C
• IP20 rating indicates protection against solid objects over 12mm, including your fingers
• Maximum voltage rating of 240V AC means it’s safely insulated for electrical applications
• Mechanical lifespan of 10,000 switching cycles makes it reliable for long-term use
• Thermal-magnetic tripping mechanism for instant shutdown, minimising damage to your systems

How wide is this MCB?

This single-pole breaker has a width of just 17.7mm, so it fits snugly inside your equipment or panel.

Note

Eaton formerly known as Moeller

FAZ Series

Datasheet - 278666 FAZ-C4/1N

Installation Sheet - 278666 FAZ-C4/1N

Catalogue - xEffect - Industrial Switchgear Range
