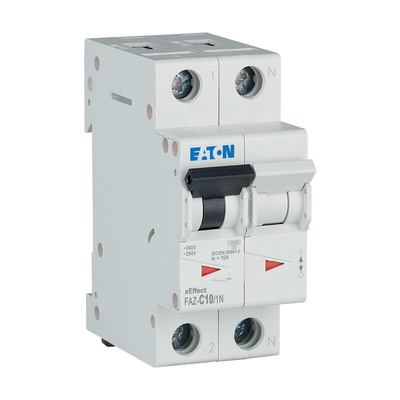

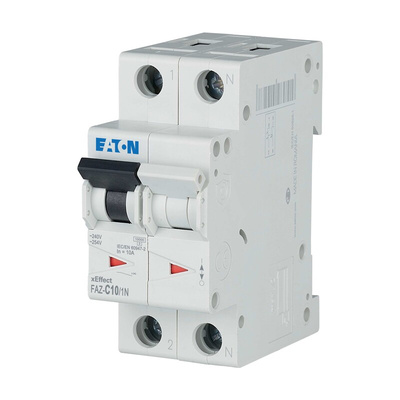

278670 FAZ-C10/1N, Eaton xEffect MCB, 1P+N, 10A Curve C, 240V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 7.5kA Operational Switching Capacity, 17.5mm Mounting Width - FAZ Series - 278670 FAZ-C10/1N

Looking to boost your electrical safety? Choose this 1P+N MCB from Eaton to rein in dangerous currents and trip power supplies when faults are detected. This protects equipment against damage and reduces the irritation of downtime. It also makes your environment safer by guarding users against electric shocks. When there's a problem, the device breaks feed paths even if impatient fingers try to keep it in the ON position. With a narrow mounting width per pole of 17.5mm, it's easy to squeeze this compact unit onto crowded panels. Use it for small motors and fluorescent lighting.

Features & Benefits

• DIN rail mounting makes installation quick and easy
• Carries an IP40 rating when fitted to protect against tools and wires greater than 1mm
• IEC/EN 60947-2 approval assures you of a safe unit

What's the reason for the neutral pole on this MCB?

It carries the circuit back to the power sources to ground it. This improves current circulation and optimisation.

What's the tripping characteristic of this MCB?

It has a type-C tripping curve, meaning it cuts power when it receives 5 to 10 times its 10A current rating.

Note

Eaton formerly known as Moeller

FAZ Series
