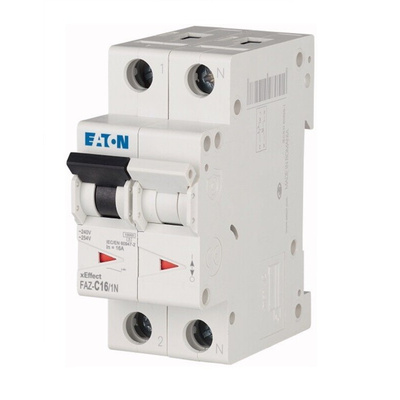

278674 FAZ-C16/1N, Eaton xEffect MCB, 1P+N, 16A Curve C, 240V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 240V AC Voltage Rating, 16A Current Rating - xEffect Series - 278674 FAZ-C16/1N

For reliable protection against short circuits in electrical control and distribution systems, choose this MCB from Eaton. It features a thermal-magnetic mechanism that monitors single-phase circuits and breaks the current flow in the event of a short circuit or overcurrent, preventing damage to your components. This device has type C tripping characteristics, which means that it cuts power at 5 to 10 times the 16A rated current, making it a practical choice for surge-prone equipment like fluorescent lights. It's an essential part of small motor protection setups and switchgear systems.

Features & Benefits

• Compact dimensions of 80 (height) x 17.5 (width) x 45mm (depth) for installation in setups with limited space
• Wide operating temperature range of -40°C to +75°C for use in demanding environments
• Thermoplastic housing for resistance to impact and heat
• Red and green contact position indicators for easy identification of operating status

How much power does this circuit breaker lose to heat?

This MCB dissipates just 2.6W of power as heat, making it an energy-efficient choice.

How do I mount this MCB?

This MCB is designed for tool-free mounting on a DIN rail, making installation quick and simple.

Note

Eaton formerly known as Moeller
