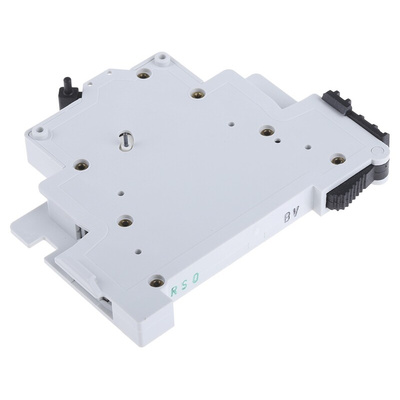

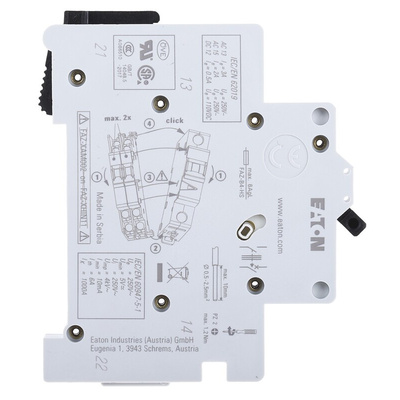

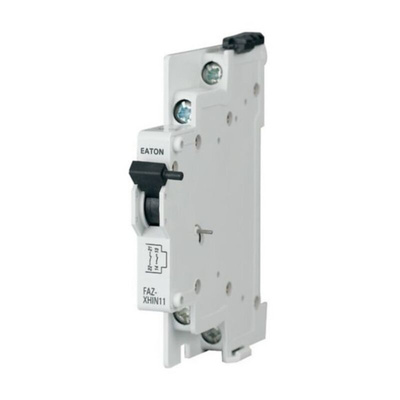

286054 FAZ-XHIN11, Eaton Auxiliary Contact, 2 Contact, 1NC + 1NO, DIN Rail Mount

Eaton Auxiliary Contact, 80mm Enclosure Height, 45mm Front Dimension - FAZ Series - 286054 FAZ-XHIN11

Want to take your MCB to the next level? This NO/NC auxiliary contact from Eaton unlocks its full potential. The unit's designed to add extra functions to miniature circuit breakers, such as protection against electric shocks. The two contacts offer redundancy, ensuring that the auxiliary contact will continue to work even if the other fails, boosting safety and reliability. Thanks to a 230V operational voltage, it's able to handle high-powered systems in settings like electrical power generation, industrial automation and the transportation industry.

Features and Benefits

• Mounts in a snap onto a standard 35mm DIN rail
• Screw terminals provide a secure and speedy connection
• IP40 rating indicates resistance to tools and small wires larger than 1mm

What does the unit's SPDT pole and throw configuration mean?

Auxiliary contacts are low power relays designed for switching currents of up to 6A. Typical applications include:
• Electric engineering
• Automation
• Process control engineering
• Electrical installation

An SPDT pole and throw configuration has one input or output pole and two possible output paths. It's commonly used in electrical applications to switch between two different circuits or select between two different inputs.

Can I use this auxiliary contact in industrial conditions?

Yes, it has an operating temperature range between -5°C and +40°C so it's safe to use in harsh environments.

Note

Eaton formerly known as Moeller

FAZ Series

FAZ-XHIN11 Datasheet

Instruction Sheet - 286054 FAZ-XHIN11
