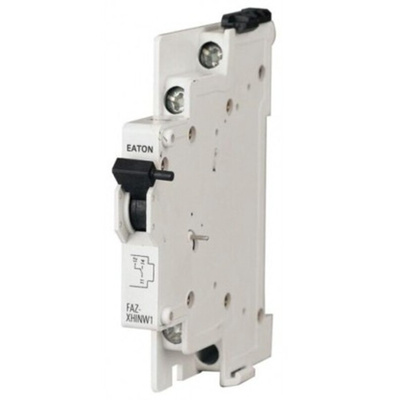

286055 FAZ-XHINW1, Eaton Auxiliary Contact, 1 Contact, 1CO, DIN Rail Mount

Eaton Auxiliary Contact, SPCO Configuration, Screw Termination - FAZ Series - 286055 FAZ-XHINW1

Connect circuitry to your control system with this auxiliary contact from Eaton. When an attached safety device trips, the unit's changeover contact switches circuits, automatically sending a signal to your controller and preventing interruptions to work. It handles AC voltages up to 240V and DC connections up to 120V, so it's compatible with many common power supplies without needing an extra transformer. Mount this contact securely onto the side of your safety device to ensure it switches reliably when needed.

Features & Benefits

• Works with both solid and stranded cable cross-sections between 0.5 and 2.5mm², reducing the need to replace wiring
• IP40 rating indicates high protection against small objects like wires for a longer service life
• Impulse voltage rating of 2.5kV means the contact keeps working after electrical surges for minimal disruption
• Screw terminals protect connections against movement

What devices can I use this auxiliary contact with?

You can use this contact with many components, including MCBs, contactors and relay switches. You can also use the device by itself as a control switch for an individual machine.

Note

Eaton formerly known as Moeller

FAZ Series

Catalogue - Circuit Protection

Datasheet - 286055 FAZ-XHINW1
