RS PRO LED Emergency Lighting, Bulkhead, 3 W, Maintained

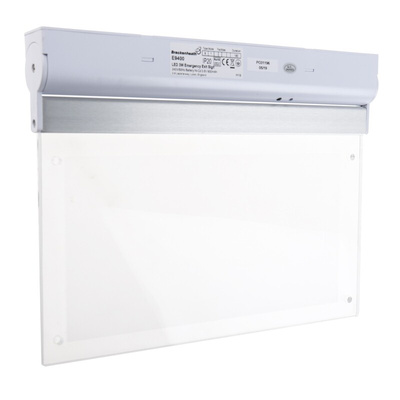

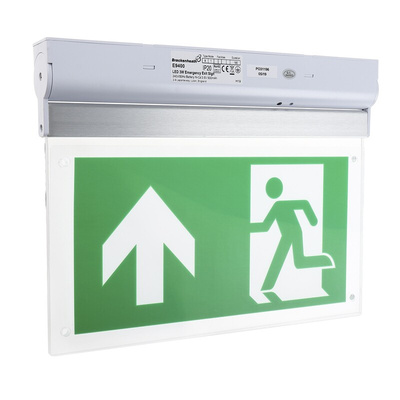

RS PRO LED Emergency Exit Sign, 3W

The RS PRO LED 3W emergency exit hanging sign provides a minimum of 3 hours illumination in the event of a power failure. Utilising LED technology offers increased energy and cost savings. The LED 3W emergency exit sign boasts a longer operating life and requires fewer batteries in comparison to traditional emergency lighting.

In the event of an emergency, our RS PRO range of emergency lighting which also includes LED, twin-spots and bulkheads mean that you have the right lighting to illuminate exits. The whole range is RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits:

• 16pcs LED - White (3500K)


• Polycarbonate frame and PVC legend


• Ni-Cad battery: 4.8V 90mAh

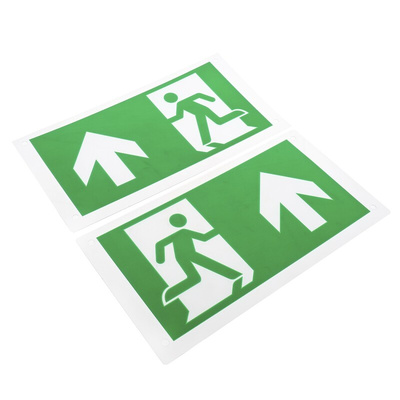

• Supplied with running legend


• 3 hour emergency duration


• Supplied maintained


• Green LED indicator


• Only 50 mm deep


• Dimensions: 300 x 230 x 50 mm


• Visible up to 24 m


• Ingress protection rating- IP20, you can touch it with your fingers but has no water protection


• 230V

Typical Applications

Ideal for commercial, industrial and retail applications and can be found in:
Corridors
Workshops
Emergency exits

FAQs

What is the difference between maintained and non-maintained emergency lighting?

Maintained emergency lighting's purpose is to be lit continuously and will stay lit when there is a power failure or an emergency such as a fire. A maintained emergency light will allow the pathways or areas to be permanently illuminated and usually helps guide people to exit signs and safety. Sometimes these types of lighting solutions can double up as a normal light fitting.

Non-maintained emergency lighting has been designed to switch on in the instance of an emergency or power outage to help provide lighting to people who need to make their way to an exit or to follow an escape route. This kind of lighting solution provides a battery backup light source.

Why is Emergency Lighting so important?

It is essential that all occupied non-domestic buildings should have escape lighting to allow for safe exit should mains power fail. Emergencies luminaires have fitted back up batteries which are continuously charged during standard operation and have at least 3 hours of power. Lights must be installed to provide sufficient illumination according to the different areas of premises and must conform to the latest legislation.

Standards

EN 60598-1: 2008+A11: 2009
EN 60598-2-22: 1998+A1: 2003+A2:2008
EN 55015: 2013
EN 61000-3-2: 2006+A2: 2009
EN 61000-3-3: 2013
EN 61547: 2009

Exit Routes & Route Guides

There are two basic types of emergency lighting luminaires - maintained and non-maintained.,Maintained,These luminaires have the advantage of being able to be switched between the maintained function (lamp illuminated at all times) and non-maintained (lamp off until power supply fails), making them ideal for applications such as corridors, workshops and permanently illuminated emergency exit signs.The maintained luminaires also have the facility of being switched in banks of up to ten units.,Non-maintained,These luminaires are only illuminated on a failure of the mains supply. Ideal for emergency exits, switchrooms and storage areas.

Contains SVHC - Cadmium - CAS No. 7440-43-9

RS PRO Datasheet

Restricted to Professional Users Only

Permitted use of Nickel Cadmium (Ni-Cd) Batteries
