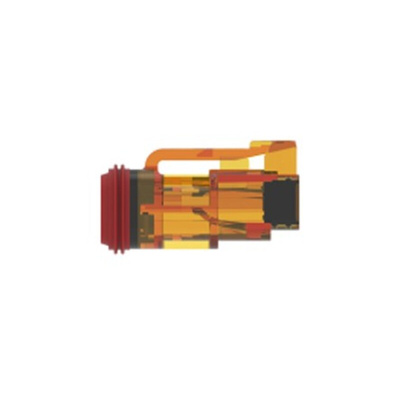

DT06-2S-SDT-CE28, Deutsch, DT Automotive Connector Plug 2 Way, Crimp Termination

DT Receptacle, with Clear Housing

From Deutsch, a range of DT series male housings designed to accept female crimp contacts for inline cable to cable connections. The DT transparent detector housings, when used with the appropriate wedge locks provide a gentle glow indicating power is present. The wedge locks have integrated LED’s and are colour coded for easy identification of voltage. Yellow for 12 V dc see part number 922-8780 and red for 24 V dc see part number 922-8780. This unique feature helps with troubleshooting when the connectors are utilised in applications that are difficult to access.

Features and Benefits

• IP67
• Accepts all size 16 Deutsch contacts, solid or stamped and formed
• 13A rated current
• Multi-directional viewing of LED through transparent housing
• Colour coded wedge locks, 12 V dc (yellow) 24 V dc (red)
• Joint retention fingers allowing both contacts to be removed at the same time
• Compatible with pulse width modulated control
• Operating Temperature Range of -55 to +125
• Mates with all DT04-2P receptacles

Applications

• Truck and bus
• Off highway construction
• Agriculture
• Mining
• Emergency vehicles
• Forestry
• Recreational marine
• Motorcycle

Available in this Range

• Stock No. 922-8774 is a 2 Way Free Hanging Plug Housing with Clear Housing and End Cap
• Stock No. 922-8777 is a 2 Way Free Hanging Plug Housing with Clear Housing
