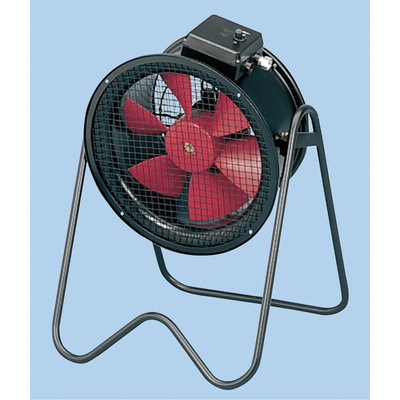

010358 -PBB, UNELVENT Floor, Heavy Duty Fan 2250m³/h 3 speed 230 V ac with plug: Type C - European Plug, Вентилятор

9232688
Номер производителя: 010358 -PBBПроизводитель: UNELVENT
Цена за шт.
302322.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Unelevent Portable Cooling Fans

A range of industrial cooling fans designed to provide high volumes of air.

The fan casing is formed from heavy gauge rolled sheet steel with the motor support manufactured from steel rod and electro-welded for increased strength. The fan assembly is supported by a robust cold formed tubular steel stand. The whole assembly is protected by cataforesis primer and black polyester paint finish.

Plastic impellers are dynamically balanced and manufactured in a UV stabilised injection moulded plastic. They are also reinforced with fibreglass and are resistant to many chemical and abrasive airstreams.

All models are fitted with robust steel wire finger guards on both the inlet and outlet sides of the fan.

All wiring connections are made via an IP65 rated terminal box fixed to the exterior of the casing and provided with 2 poles On/Off switch.

Features and Benefits

Frame mounted ducted fan
IP65 Protected motors
Class F insulation
Working temperature -40 °C to +70 °C
Thermal protection
Speed controllable
Single phase 230 V @ 50 Hz (capacitor located inside the terminal box)

Техническая спецификация
pdfDatasheet
Высота:
642мм
Глубина:
470мм
Количество скоростей:
3
Максимальный ток:
600мА
Напряжение питания:
230 В перем. тока
Поток воздуха:
2250м³/ч
Размеры:
642 x 439 x 470мм
Тип вентилятора:
Floor, Heavy Duty
Тип вилки:
Type C - European Plug
Ширина:
439мм
