EC1080, Mellor Electric, DC Motor Controller, 1 Phase, Potentiometer, Voltage Control, 24 V dc, 500 mA, Screw Mount, Контроллер

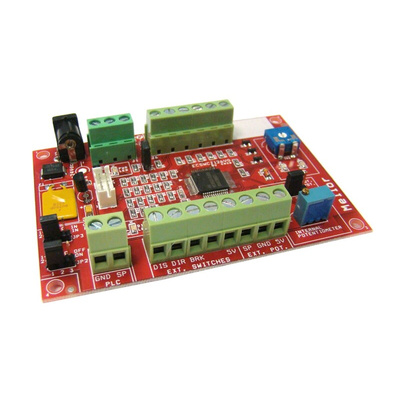

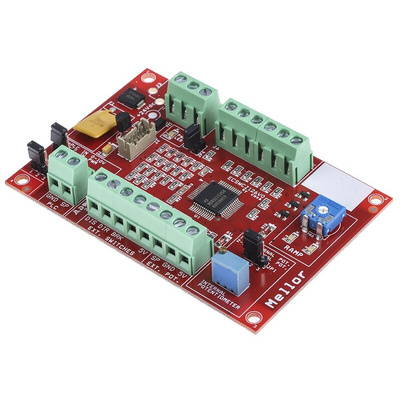

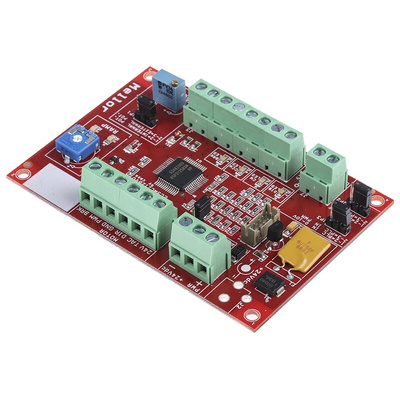

Mellor Brushless DC Motor Controller

DC Motor controller is designed for use with Brushless DC motors with hall-feedback. The controller requires an external 24 V dc and can be installed using screws or standard rail mounting base. It features easy set speed adjustment, direction change and braking. The controller also includes several control modes; internal or external proportional control or external input, 0-10 V or PWM selectable. PWM selectable can set the speed of rotation by an external device.
The controller is protected against reversed input voltage polarity and fuse protected against overcurrent.

• 24 V dc supply voltage
• Single phase output
• Direction change
• Brake system
• Hall-transducer
• Adjustable speed limit
• Direct or frequencies driving
• High efficiency
• In-built resettable fuse
• Rail mounting base available

DC Brushless Motors

A range of Brushless DC Motors with integrated communication electronics.
Speed control feedback via hall sensors.
