MIKROE-1885, MikroElektronika Thermo 3 Click Temperature Sensor Add On Board MikroBUS

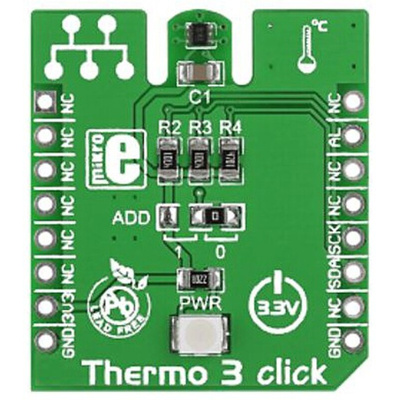

Thermo 3 click mikroBUS™

The Click accessory modules plug into the mikroBUS™ sockets in MikroElektronika microcontroller development boards. The Thermo 3 click™ accessory board includes the low-power digital Temperature Sensor TMP102. The board communicates via the mikroBUS™ I2C pins to the target board microcontroller. The TMP102 IC measures between -25°C to 85°C with 0.5°C accuracy. The Thermo 3 click™ has an integrated 12-bit ADC and is designed to work on 3.3 V power supply. Applications include Thermal-management and thermal protection.

Footprint: 1.6 x 1.6 mm
Selectable I2C address
Ready to use examples
Supported in all MikroElektronika compilers
mikroBUS™ is a specially designed pinout standard with SPI, I2C, Analogue, UART, Interrupt, PWM, Reset and power supply pins

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Sensor Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
