MikroElektronika MIKROE-1200, EEPROM Click EEPROM Add On Board for mikroBUS

EEPROM click mikroBUS™

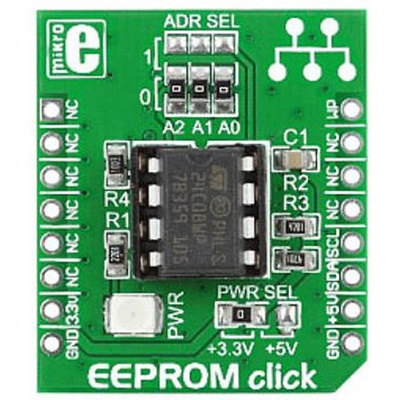

The EEPROM click is an accessory board for adding EEPROM (Electrically Erasable PROgrammable Memory) memory. It features the 24C08WP, a highly reliable, high performance, CMOS technology 8 Kbit serial I²C bus EEPROM in a DIP package. The module is compact with a mikroBUS pinout standard.

24C08WP serial EEPROM with 8K bits of memory organised as 1K ´ 8 bits
Industry standard I²C communication interface
Three SMD jumpers allow hardware setting of EEPROM address
EEPROM IC is easy to replace on the DIP socket
3.3 V or 5 V power supply
Power LED on-board

Note

Click board comes with the header strips soldered.
