1469520000, Weidmuller PRO ECO DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 40A Output, 960W, Блок питания

Weidmuller DIN Rail Power Supply, 3.5mA Maximum Earth Leakage Current, 85 to 264V AC Input Voltage Range - PRO ECO Series - 1469520000

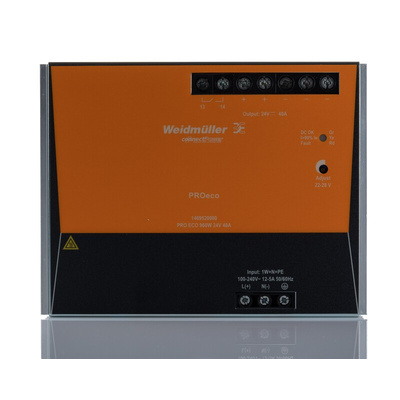

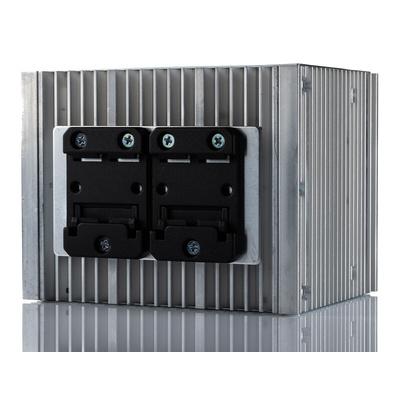

This versatile DIN rail power supply from Weidmuller packs a serious punch in a small package. The compact device measures 125 (H) x 160 (W) x 120mm (D) and has a power output up to 960W, so it has very high power density. This makes it a safe bet for your heavy-load applications like motor starting. You can count on it to provide DC energy from AC or DC supplies, as it converts input voltages between 85 and 264V AC or 80 to 370V DC to a stable output of 24V DC. A 93% efficiency rating means it wastes little energy as heat, so it keeps its cool without the need for a heatsink.

Features & Benefits

• Tricolour LED for clear status indication and easy diagnostics
• Ripple and noise of

Applications

• Process control
• Factory automation
• Power management

What temperatures can I use this DIN rail power supply in?

The unit has a wide operating temperature range of -25°C to +70°C, so you can put it to the test in harsh environments.

PRO ECO

Instruction Sheet - 1469520000

9236517_Catalogue
