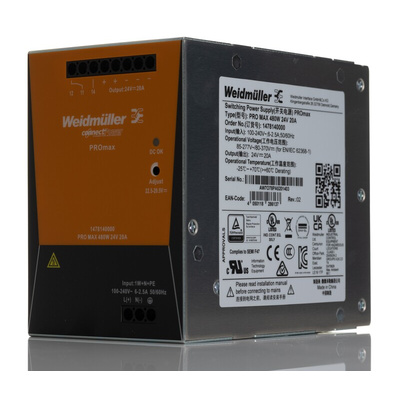

1478140000, Weidmuller PRO MAX Power DIN Rail Power Supply, 85 → 277V ac ac, dc Input, 24V dc dc Output, 20A Output, 480W, Блок питания

Weidmuller DIN Rail Power Supply, 85 to 277V AC Input Voltage Range, 150mm Depth - PRO MAX Series - 1478140000

Need a high-performance power supply that can keep up with demanding tasks? This DIN rail power supply from Weidmuller will give you a boost. It takes an input voltage range between 85 and 277V AC or 80 and 370V DC and converts it into a steady, reliable output voltage of 24V DC. This helps to ensure your connected devices perform optimally and are protected against damage. For enhanced safety, this hardy unit can withstand continuous overloads of up to 20% or short-term peak loads of 300%.

• Wide operating temperature range of -25°C to +70°C for use in demanding environments
• Compact dimensions of 130 (H) x 90 (W) x 150mm (D) for installation in tight spaces

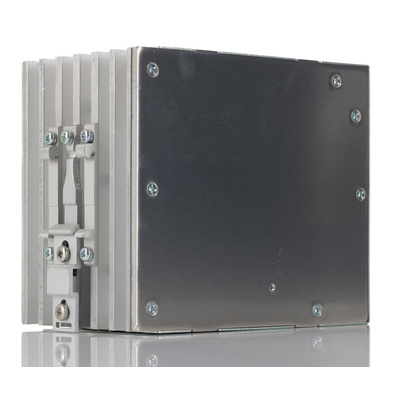

• Snaps into place on a DIN rail for ease of installation
• Efficiency of 92% means little power is wasted in the form of heat

Applications

• Assembly lines
• Machine management
• Process control

Is this power supply safe to handle?

Yes, its IP20 rating means it's finger-safe and protected against objects larger than 12mm in size.

Switch Mode - Weidmuller

Datasheet

Datasheet

Instruction Sheet - 1478140000

Catalogue - Power Supplies
