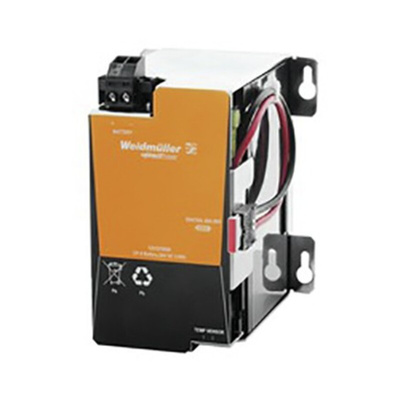

1251070000, Weidmuller Weidmüller Battery Module, for use with DC UPS

Weidmüller Battery

The Weidmüller 3.3Ah battery is a reliable, efficient and robust power supply accessory used with DC UPS. The battery module has a capacity of 24VDC and maximum input current range of 10A. It consists of high-quality Panasonic battery. In the event of a power shortage, the buffers take over the power supplies in the ranging from 250 milliseconds to 1 second in automation systems. The energy is stored in the internal capacitors making them maintenance-free. The buffers incorporate an LED display to show the respective state of the buffer. This is a sealed maintenance-free lead-fleece battery. The battery module is fitted with a temperature sensor to provide optimum battery charging and battery life.

Features and Benefits

Mount type is DIN rail
Operating temperature ranging between 0°C and 40°C
Buffer time is 5 minutes

Applications

DC
UPS

Certifications

CE certified
CULus approved
EAC
IP20 rated
RCM
TUV approved
UL approved

CP BATTERY

Contains SVHC - Lead - CAS No. 7439-92-1
