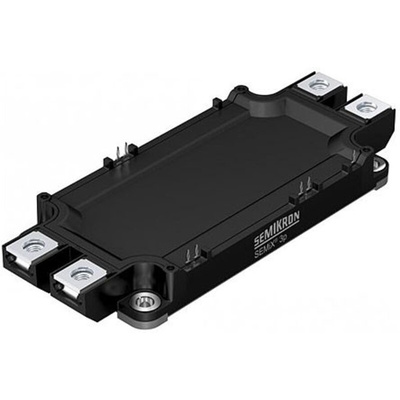

Semikron SEMiX303GB12E4p Series IGBT Module, 469 A 1200 V, 11-Pin SEMiX®3p, Through Hole, Модуль

SEMiX® Dual IGBT Modules

Dual IGBT Modules from Semikron in modern low-profile SEMiX® packages suitable for half-bridge power control applications. The modules use solder-free spring or press-fit contacts to allow for a gate driver mounted directly on top of the module, saving space and offering greater connection reliability. Typical applications include AC inverter drives, UPS, Electronic Welding and Renewable Energy Systems.
For suitable press-fit gate driver modules see 122-0385 to 122-0387

• Low profile solder-free mounting package
• Trenchgate technology IGBTs
• VCE(sat) has positive temperature coefficient
• High short circuit current capability
• Press-fit pins as auxiliary contacts
• UL recognized

IGBT Modules, Semikron

The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.

SEMiX303GB12E4p Trench IGBT Modules
