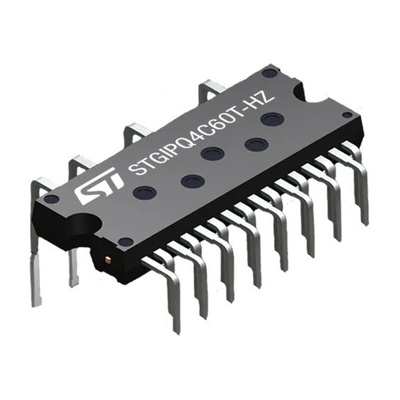

STMicroelectronics STGIPQ4C60T-HZ IGBT, 6 A 600 V, 26-Pin N2DIP-26L type Z

SLLIMM nano 2nd series IPM, 3-phase inverter, 6 A, 600 V, short-circuit rugged IGBT

This second series of SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six improved short-circuit rugged trench gate fieldstop IGBTs with freewheeling diodes and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching speed. The package is designed to allow a better and more easily screwed-on heat sink, and is optimized for thermal performance and compactness in built-in motor applications or other low power applications where assembly space is limited. This IPM includes a completely uncommitted operational amplifier and a comparator that can be used to design a fast and efficient protection circuit.

• IPM 6 A, 600 V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving and freewheeling diodes


• 3.3 V, 5 V, 15 V TTL/CMOS input comparators with hysteresis and pull-down/pull-up resistors


• Internal bootstrap diode


• Optimized for low electromagnetic interference


• Undervoltage lockout


• Short-circuit rugged TFS IGBT


• Shutdown function


• Interlocking function


• Op-amp for advanced current sensing


• Comparator for fault protection against overcurrent


• Isolation ratings of 1500 Vrms/min.


• NTC (UL 1434 CA 2 and 4)


• Up to ±2 kV ESD protection (HBM C = 100 pF, R = 1.5 kΩ)


• UL recognition: UL 1557, file E81734

Datasheet - STGIPQ4C60T-HZ
