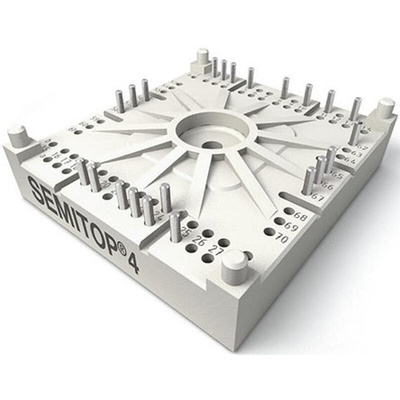

Semikron SK 150 MLI 066 T Series IGBT Module, 151 A 600 V, 70-Pin SEMITOP4, Through Hole

Quad IGBT Modules

The series configuration of these Semikron Quad IGBT modules makes them the perfect solution for applications which require a high performance 3-level topology. These compact PCB mounting SEMITOP 3 modules feature single hole fixing with excellent heat transfer and utilise Trench IGBT technology. Typical applications include 3-level DC-AC Inverters and UPS power supplies.

IGBT Modules, Semikron

The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.

SK150MLI066T, IGBT Module SEMITOP4
